Description
Features:
- With high quality audio decoder, supports MP3 and WAV audio formats.
- Works with most Windows, Mac, and Linux systems
- Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz).
- 24 bit DAC output and supports dynamic range 90 dB and SNR 85dB.
- Supports one-on-one 10 button trigger control mode and RS232 serial port control mode.
- In button control mode, it plays back 10 sounds one-on-one by negative triggering.
- Supports multiple messages per button
- Uses a built-in 8 MBytes (64 Mbits) SPI flash memory for storage device
- Load audio files to the flash memory directly via the micro USB connecting with computer like using a USB flash drive.
- Equipped with a mono 3 watts amplifier that can drive a 1-3 watt (4-8 ohm) speaker directly
- Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect with an external amplifier.
- Supports detection of indication signal of status change through the Busy output.
- Adjustable sound volume with the potentiometer.
- DC 5V power input. Also possible to supply the power via the micro USB port.
- PCB size: 40mmx40mm
Technical Parameters:
- Working voltage: DC 5V
- Working current: ≤250mA
- Power Consumption: ≤3W
- On-board flash memory size: 8 MBytes(64 Mbps)
- Audio format: MP3 and WAV
Instructions:
- http://www.electronics123.net/amazon/datasheet/FN-BC10-PN-Instructions.pdf
- http://www.electronics123.net/amazon/datasheet/FN-BC10-PN-HTML.html

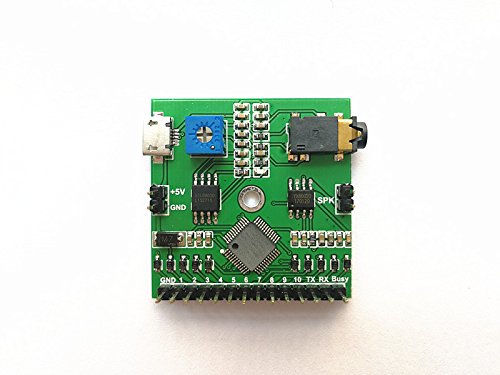

10 Buttons Triggered MP3 Player Board with 10W Amplifier and Connector Pins
Current Price
$28.95
Average
$28.95
Min Price
$28.95
Max Price
$28.95
Description
Features:
- With high quality audio decoder, supports MP3 and WAV audio formats.
- Works with most Windows, Mac, and Linux systems
- Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz).
- 24 bit DAC output and supports dynamic range 90 dB and SNR 85dB.
- Supports one-on-one 10 button trigger control mode and RS232 serial port control mode.
- In button control mode, it plays back 10 sounds one-on-one by negative triggering.
- Supports multiple messages per button
- Uses a built-in 8 MBytes (64 Mbits) SPI flash memory for storage device
- Load audio files to the flash memory directly via the micro USB connecting with computer like using a USB flash drive.
- Equipped with a mono 3 watts amplifier that can drive a 1-3 watt (4-8 ohm) speaker directly
- Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect with an external amplifier.
- Supports detection of indication signal of status change through the Busy output.
- Adjustable sound volume with the potentiometer.
- DC 5V power input. Also possible to supply the power via the micro USB port.
- PCB size: 40mmx40mm
Technical Parameters:
- Working voltage: DC 5V
- Working current: ≤250mA
- Power Consumption: ≤3W
- On-board flash memory size: 8 MBytes(64 Mbps)
- Audio format: MP3 and WAV
Instructions:
- http://www.electronics123.net/amazon/datasheet/FN-BC10-PN-Instructions.pdf
- http://www.electronics123.net/amazon/datasheet/FN-BC10-PN-HTML.html
