Description

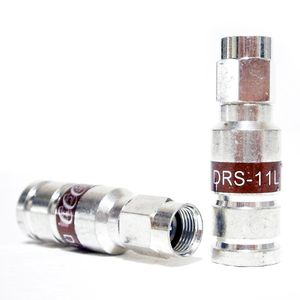

PCT-TRS-11L Compression connector, Torque Retaining, Continuous Ground Series 11 (RG11) Standard through Quad-Shield
- Features
- Continuous Ground - Improved ground contact both when tight and loose
- Enhanced Shielding - Improved shielding effectiveness when loose
- Torque Retaining - Built in lock washer keeps the connection tight
- Tested to ANSI/SCTE, ASTM and Telcordia (formerly Bellcore) Standards - The only coaxial connector that meets Telcordia's loosening torque specification
- All Metal Design - 100% Brass Construction
- Dual O-Ring Design - Delivers a superior barrier against mosture intrusion
- Metal Compression Rings - Stay compressed and wont break down
- General Specifications
- Bandwidth: 5Mhz to 3Ghz
- Impedance (Nominal): 75 Ohms
- Return Loss (minimum)
- 5 MHz to 1 GHz: 30dB
1 to 1.5 GHz: 25 dB
1.5 to 3 GHz: 18 dB - Insertion Loss: At 3 GHz: Less than or equal to .2 dB
- Loosened Condition: Continuous ground feature maintains the ground path even in a loosened state
- Cable Range: RG11 Cable Standard to Quad-Shield
- Cable Retention: >70lbs (31.75 kg), Ambient Temperature
- Physical Characteristics
- Pin Diameter: 0.037in (.94mm)
- Construction Material: Nickel Plated Brass
- Pin Construction: Beryllium Copper with Tin Plating
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
100 Pieces PCT-TRS-11LMG Compression RG11 Connector Torque Retaining Continuous Ground Standard through Quad-Shield Weather Seal Coaxial Fitting 21mm Stroke Length
Current Price
$100
Average
$95
Min Price
$90
Max Price
$100
Price dynamics
5%
Description
PCT-TRS-11L Compression connector, Torque Retaining, Continuous Ground Series 11 (RG11) Standard through Quad-Shield
- Features
- Continuous Ground - Improved ground contact both when tight and loose
- Enhanced Shielding - Improved shielding effectiveness when loose
- Torque Retaining - Built in lock washer keeps the connection tight
- Tested to ANSI/SCTE, ASTM and Telcordia (formerly Bellcore) Standards - The only coaxial connector that meets Telcordia's loosening torque specification
- All Metal Design - 100% Brass Construction
- Dual O-Ring Design - Delivers a superior barrier against mosture intrusion
- Metal Compression Rings - Stay compressed and wont break down
- General Specifications
- Bandwidth: 5Mhz to 3Ghz
- Impedance (Nominal): 75 Ohms
- Return Loss (minimum)
- 5 MHz to 1 GHz: 30dB
1 to 1.5 GHz: 25 dB
1.5 to 3 GHz: 18 dB - Insertion Loss: At 3 GHz: Less than or equal to .2 dB
- Loosened Condition: Continuous ground feature maintains the ground path even in a loosened state
- Cable Range: RG11 Cable Standard to Quad-Shield
- Cable Retention: >70lbs (31.75 kg), Ambient Temperature
- Physical Characteristics
- Pin Diameter: 0.037in (.94mm)
- Construction Material: Nickel Plated Brass
- Pin Construction: Beryllium Copper with Tin Plating
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
The Jonard Industry CT 200 universal compression tool is designed for use on F connectors RG59, RG6, and RG11, BNC connectors RG59 and RG6, and RCA connectors RG59 and RG6. This patented universal compression tools unique design features a dual head and an adjustment dial making it the perfect tool for technicians dealing with multiple connectors. Its versatility also eliminates the need to carry multiple tools. The CT 200 is compatible with most connectors including PPC, Corning Gilbert, Thomas and Betts, Digicon, plus many other brands and styles including F, RCA, and BNC types. Please visit our website at www.jonard.com for more information on connector sizes, styles, and compatibility. To use the CT 200, first prep the cable using the Jonard UST 500. Next, select the proper connector type on the plunger and insert the plunger into the CT 200. And finally, determine the size of your
