Product Classification

• Type: Coaxial drop cable
• Series: 6 Series

Construction Materials

• Jacket Material: PVC
• Center Conductor Material: Copper-clad steel
• Dielectric Material: Foam PE
• Inner Shield (Braid) Coverage: 77 %
• Inner Shield (Braid) Gauge: 34 AWG
• Inner Shield (Braid) Material: Aluminum
• Inner Shield (Tape) Material: Aluminum/Polymer/Aluminum (APA) bonded
• Messenger Wire Material: Zinc-coated steel
• Outer Shield (Tape) Material: Aluminum/Polymer/Aluminum (APA) bonded

Electrical Specifications

• dc Resistance, Inner Conductor, nominal: 30.50 ohms/kft
• dc Resistance, Outer Conductor, nominal: 6.40 ohms/kft
• dc Resistance, Loop, nominal: 36.90 ohms/kft
• Operating Frequency Band: 5-3000 MHz
• Structural Return Loss: 15 dB @ 1003-1794 MHz, 20 dB @ 5-1002 MHz
• dc Resistance Note: Nominal values based on a standard condition of 20 °C(68 °F)
• Capacitance: 53.1 pF/m, 16.2 pF/ft
• Characteristic Impedance: 75 ohm
• Characteristic Impedance Tolerance: ±3 ohm
• Nominal Velocity of Propagation (NVP): 85 %

Environmental Specifications

• Environmental Space: Aerial

General Specifications

• Cable Type: Series 6

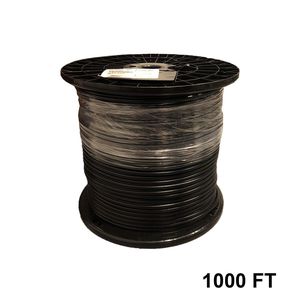

• Packaging Type: Reel
• Shield Construction Type: Trishield
• Center Conductor Gauge: 18 AWG
• Center Conductor Type: Solid
• Jacket Color: Black
• Jacket Marking: Feet
• Messenger Wire Type: Solid
• Warranty: One year

Mechanical Specifications Messenger Wire

• Breaking Strength, minimum: 82 kg, 180 lb

Compliance: RoHS 2011/65/EU ISO 9001:2015
