Description
Product features:
The protection board is suitable for Li-Ion batteries of the series 10, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connection and discharge connection are separated, the discharge current is 18A. Stable various protection functions for charging and discharging, such as overcharge protection, over-discharge protection and short-circuit protection. It has balance function that would ensure that each battery cell is fully charged at the same time.
Choosing the right protection plate and the right application is crucial for the longevity of your batteries.
specifications:
Size: 53 * 63mm / 2.08 * 2.48 "
Used for: 36V10 star / manganese acid / cobalt acid batteries
Overload protection voltage: 4.25V ± 0.05V
Overload recovery voltage: 4.10-4.00V
Single over-discharge protection voltage: 2.8V ± 0.1V
One-time overload recovery voltage: 3.0V ± 0.1V
Protection consumption current: ≤300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55/65/75 ℃
Discharge current: 18A
Max. Current Current: 40A
Single compensation voltage: 4.19V ± 0.02V
Single balance current: ≤55MA
Charging current: ≤10A
Package contents:
1 x battery protection board
The protection board is suitable for Li-Ion batteries of the series 10, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connection and discharge connection are separated, the discharge current is 18A. Stable various protection functions for charging and discharging, such as overcharge protection, over-discharge protection and short-circuit protection. It has balance function that would ensure that each battery cell is fully charged at the same time.
Choosing the right protection plate and the right application is crucial for the longevity of your batteries.
specifications:
Size: 53 * 63mm / 2.08 * 2.48 "
Used for: 36V10 star / manganese acid / cobalt acid batteries
Overload protection voltage: 4.25V ± 0.05V
Overload recovery voltage: 4.10-4.00V
Single over-discharge protection voltage: 2.8V ± 0.1V
One-time overload recovery voltage: 3.0V ± 0.1V
Protection consumption current: ≤300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55/65/75 ℃
Discharge current: 18A
Max. Current Current: 40A
Single compensation voltage: 4.19V ± 0.02V
Single balance current: ≤55MA
Charging current: ≤10A
Package contents:
1 x battery protection board

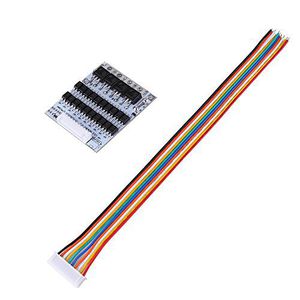

10S 36V 40A Li-ion Battery Protection Board BMS PCB for Ternary Cobalt Acid Batteries w/Balance for Ternary Batteries, Manganese Acid Batteries and Cobalt Acid Batteries
Current Price
$14.99
Average
$14.99
Min Price
$14.99
Max Price
$14.99
Description
Product features:
The protection board is suitable for Li-Ion batteries of the series 10, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connection and discharge connection are separated, the discharge current is 18A. Stable various protection functions for charging and discharging, such as overcharge protection, over-discharge protection and short-circuit protection. It has balance function that would ensure that each battery cell is fully charged at the same time.
Choosing the right protection plate and the right application is crucial for the longevity of your batteries.
specifications:
Size: 53 * 63mm / 2.08 * 2.48 "
Used for: 36V10 star / manganese acid / cobalt acid batteries
Overload protection voltage: 4.25V ± 0.05V
Overload recovery voltage: 4.10-4.00V
Single over-discharge protection voltage: 2.8V ± 0.1V
One-time overload recovery voltage: 3.0V ± 0.1V
Protection consumption current: ≤300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55/65/75 ℃
Discharge current: 18A
Max. Current Current: 40A
Single compensation voltage: 4.19V ± 0.02V
Single balance current: ≤55MA
Charging current: ≤10A
Package contents:
1 x battery protection board
The protection board is suitable for Li-Ion batteries of the series 10, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connection and discharge connection are separated, the discharge current is 18A. Stable various protection functions for charging and discharging, such as overcharge protection, over-discharge protection and short-circuit protection. It has balance function that would ensure that each battery cell is fully charged at the same time.
Choosing the right protection plate and the right application is crucial for the longevity of your batteries.
specifications:
Size: 53 * 63mm / 2.08 * 2.48 "
Used for: 36V10 star / manganese acid / cobalt acid batteries
Overload protection voltage: 4.25V ± 0.05V
Overload recovery voltage: 4.10-4.00V
Single over-discharge protection voltage: 2.8V ± 0.1V
One-time overload recovery voltage: 3.0V ± 0.1V
Protection consumption current: ≤300UA
Short circuit protection current: 40A ± 3A
Short circuit protection time: 500MS
Temperature protection: 55/65/75 ℃
Discharge current: 18A
Max. Current Current: 40A
Single compensation voltage: 4.19V ± 0.02V
Single balance current: ≤55MA
Charging current: ≤10A
Package contents:
1 x battery protection board
