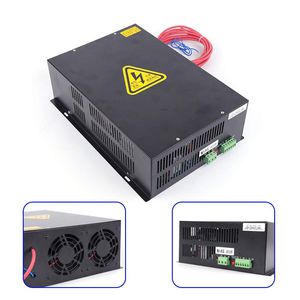

110V Co2 L.a.s.e.r Power Supply L.a.s.e.r Engraving Cutting Machine T-Series Power Supply for Co2 L.a.s.e.r Tube (HY-T150 150W)

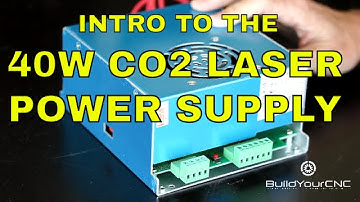

this is our 40 watt co2 laser power supply we have these 40 watt laser to power supplies in the 110 and 220 input voltage varieties the power supply comes with a fan that provides from the cooling there are two banks of terminals a test firing gun for firing the laser to test the laser output connection for the laser high tension line the first bag of terminals are dedicated to the input for the power from the wall from the mains and the high tension return line the first terminal is the high tension return line that is connected to the tube and the next one is a earth ground from the mains the last two are for the AC neutral in live in no particular order the second Bank of terminals is the digital side that controls the power supply which controls the laser output and the first terminal is the five volt input this provides the five volts for digital level power there is an input and y
