Description:

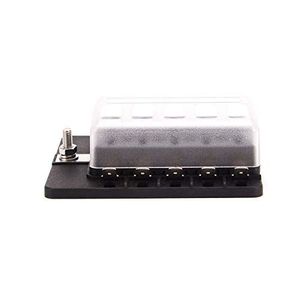

High quality covered fuse box perfectly suited to all automotive, motorsport, motor home and marine applications. This fuse holder with the added benefit of a warning LED indicator to show if a fuse has blown. These accept standard Blade Fuses.

Specification:

Input terminal rating: M5 threaded studs(100A 32V DC. max)

Input wire size: #4-6 AWG

Output terminal rating: 30A max per circuit

Output wire size: #12-16 AWG

Red LED indicates when fuse is broken

Fuse Type: Standard Blade Fuse (max 30A)

Connections IN: 1x 10-32 UNF (M5 Ring Terminal will fit)

Temperature Range: -20°C~80°C

Mounting: 4x M5 Screw

Material:

Base: PBT

Cap: PC

Terminal: Nickel plated copper

Screw: Stainless steel

Label: PPx40

Size(W*L*H): 85*100*35mm

Note:

1. This fuse holder will accept Standard Blade Fuses only.

2. Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.

Thank you for your understanding, nice day!

Package Includes:

1 x Fuse Box with Cover
