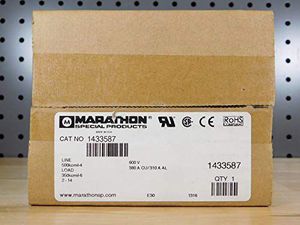

1433587, Conn Power Distribution Blocks 6 POS Screw Cable Mount 380A

welcome to GTV today I will be showing you busman's PDB series of power distribution blocks these devices have high short-circuit current ratings up to 200 ka and are rated for up to 600 volts AC or DC units are available up to 3 poles they can accommodate a wire range from 14 gauge to 350 MCM conductors on the line side with a current rating up to 310 amps taking a look at the line and load configurations there are seven different configurations for the openings per pull the load side offers models that can accommodate most conductors from 4 to 14 gauge and as a single conductor unit for larger wires in the 8 gauge to - authe range these power distribution blocks are designed to be suitable for installation in wire ways with the optional covers or in industrial control panel feeder and branch circuits spacing between the non-insulated opposite polarities or ground meets ul listing 1953
