Features:
Made of superior material, it is safe and stable.
If jumper is hit the position of ON DP,that means 16 segment (4988) or 32 segment (8825)Jm connected motor
Jv connect 5v and 12v-24v power supply.
Jc E, S, D, G, respectively corresponding to the connection of the Enable/Step/Dir/Gnd drive signal output.
You can use the A4988/DRV8825, insert the attention direction, otherwise it will burn the drive.
Great for 3D printer.

Descriptions:
Fine workmanship provides high performance.
Compact size, easy to install and use.
Professional design, it is the best choice for you.

Specifications:
Material: electronic component
Size: 70*50mm
Color: blue

Package included:

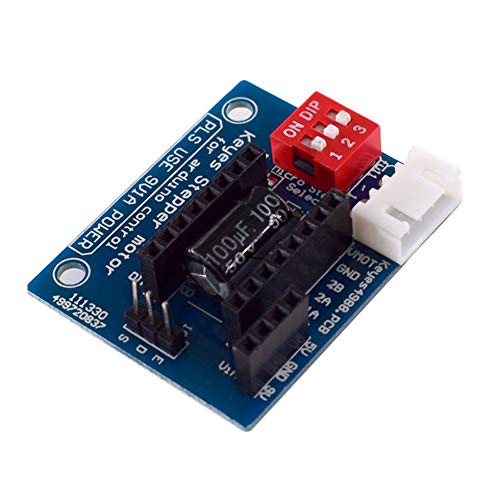

1 x A4988/DRV8825 Driver Board

Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!
