Description
We will test it before shipment.
Reference Weight:0.017kg (0.04lb.)
Feature: 1. High precision voltage detection circuit; 2. The charger terminal uses a high voltage device; 3. Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit); 4. MOS transistor can control battery charge and discharge;
Specifications:
Overcharge voltage: 4.25±0.05V Overcharge release voltage: 4.23±0.05V Overdischarge voltage: 2.54 ± 0.1V Maximum continuous charge/discharge current: 13A Maximum discharge current: 15A Size: 35 * 7 * 2 mm (L * W * T)

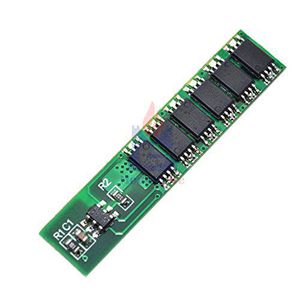

1S 3.7 V 15 A Li-on Lithium BMS PCM Battery Protection Board Compatible with 18650 Li-on Lithium Battery
Current Price
$9.41
Average
$9.41
Min Price
$9.41
Max Price
$9.41
Price dynamics
0%
Description
We will test it before shipment.
Reference Weight:0.017kg (0.04lb.)
Feature: 1. High precision voltage detection circuit; 2. The charger terminal uses a high voltage device; 3. Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit); 4. MOS transistor can control battery charge and discharge;
Specifications:
Overcharge voltage: 4.25±0.05V Overcharge release voltage: 4.23±0.05V Overdischarge voltage: 2.54 ± 0.1V Maximum continuous charge/discharge current: 13A Maximum discharge current: 15A Size: 35 * 7 * 2 mm (L * W * T)
