Description

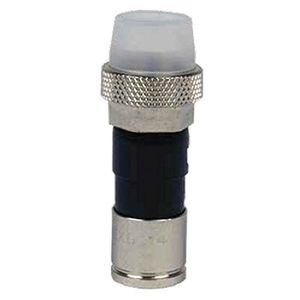

BELDEN PPC EX6XLWSPLUS Compression Connector for RG6 Cable.
- Features
- Maintains ground continuity even when very loose
- Reduces errors/packet loss
- Prevents service issues from loose connections
- Integrated port seal ensures proper moisture tight seal on every connection
- Gas-tight sealed connection between nut and post
- Nickel-Plated Brass Construction
- Large tapered compression area creates a redundant moisture-tight interface, keeping moisture out
- General Specification
- Bandwidth: 0 MHz to 3 GHz
- Impedance (nominal): 75 Ohms
- Cable Retention (Trishield): 70 lbs (31.75kg) minimum
- Return Loss: Minimum -30 dB to 3 GHz
- Insertion Loss: Less than .10 dB to 3 GHz
- Operating Temperature: -40°F to +140°F
- Cable Range: RG6 60% through Quad-Shield
- Construction Material: Nickel-Plated Brass Construction
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
20 Pieces RG6 BELDEN PPC EX6XLWSPLUS Weather Boot Aqua Tight EX series Weather Proof Anti-Corrosion Nickel-Plated Brass Construction Coaxial Cable Compression Connectors
Price is below average
Current Price
$5.01
Average
$6.34
Min Price
$5.01
Max Price
$8
Price dynamics
21%
Description
BELDEN PPC EX6XLWSPLUS Compression Connector for RG6 Cable.
- Features
- Maintains ground continuity even when very loose
- Reduces errors/packet loss
- Prevents service issues from loose connections
- Integrated port seal ensures proper moisture tight seal on every connection
- Gas-tight sealed connection between nut and post
- Nickel-Plated Brass Construction
- Large tapered compression area creates a redundant moisture-tight interface, keeping moisture out
- General Specification
- Bandwidth: 0 MHz to 3 GHz
- Impedance (nominal): 75 Ohms
- Cable Retention (Trishield): 70 lbs (31.75kg) minimum
- Return Loss: Minimum -30 dB to 3 GHz
- Insertion Loss: Less than .10 dB to 3 GHz
- Operating Temperature: -40°F to +140°F
- Cable Range: RG6 60% through Quad-Shield
- Construction Material: Nickel-Plated Brass Construction
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
