Specification:
Total Dimensions: 110x93x30mm
Frame Wheelbase: 75mm
Build Weight: 66.2g
SucceX Micro 16x16 Tower 2-4S
iFlight 1103 motors (1.5mm shaft)
Caddx.us Turtle v2 HD FPV cam
Gemfan 1635 40mm 3/4 blade OR HQ 1.6x1.6x4
iFlight Prop Guards 40mm
SucceX Mirco F4 Flight Tower System 16x16mm
SucceX Mirco F4 Flight Tower System 16x16mm
Motor kV Variants:
We offer several motor setups to fit your desired performance, equipment or just preference.
(2S), (3S) will be available.
SD card insert and ejection:
The HD cam PCB is conveniently placed under the frame, protected by a cover
To insert or eject the SD card, please push in the SD card and gently slide beside the security plastic guard.
VTX control implementation:
VTX can be conveniently set up in your OSD.
Propeller recommendation:
Gemfan for general use, durable prop, crash resistant!
HQ for video recording, JELLOFREE, better throttle management, NOT crash resistant!
Receivers available currently:
Frsky XM+
Flysky FS-A8S
Futaba FT4X
SDMX RM601X
Optional:
Frsky XM
Frsky R-XSR
Flysky IA8X
Configuration:

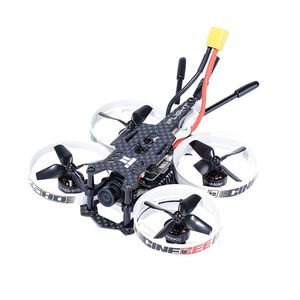

iFlight CineBee 75HD frame x1set ,iFlight SucceX Mirco F4 flight controller x1pc ,iFlight SucceX Mirco 12A 4 in 1 ESC x1pc ,iFlight SucceX Mirco VTX transmitter x1pc
iFlight 1103 11000kv motor x4pcs ,Caddx.us Turtle 2 black camerax1pc ,Gemfan 40mm 3blade 1635-3 1.5mmx4pairs ,iFlight black 10*100mm battery strapx2pcs
iFlight 3D TPUx1set ,iFlight white Flight control adapter x1pc ,iFlight white bottom plate cover x1pc ,iFlight white 40mm propeller guard x1set/4pcs
antenna protector tube（crystal）x2pcs ,antenna protector tube cap（black）x2pcs ,XT30 connector wirex1pcs ,ipex（UFL）connector 5.8G VTX antenna（8CM）x1pc
