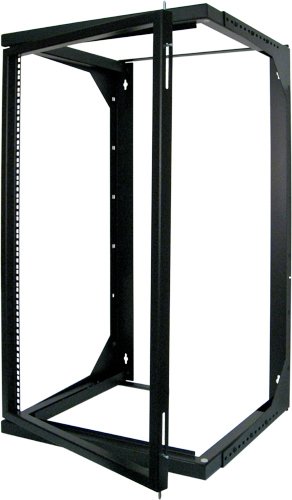

20U Open Wall Mount Frame Rack with Hinge

now let's take a look at another AV storage solution from chief the NW one series wall racks are perfect solutions for smaller office environments or classroom settings they come in depths of both 18 and 23 inches and size ranges are between 12 and 36 rack units let's take a look at the installation steps and some features and benefits for the NW one series hinged wall wrap the NW one wall racks are shipped in a single package but with the front and rear rack sections unassembled for an easier installation the first step before mounting the nw1 series wall rack is to find the center line of the rear rack section measure down from the top edge of the rear rack section once the measurement is made lay the rack down on its face using a hammer and flathead screwdriver knock out the removable rear access panel as shown then to locate the upper mounting points again measured from the top edge
