Description

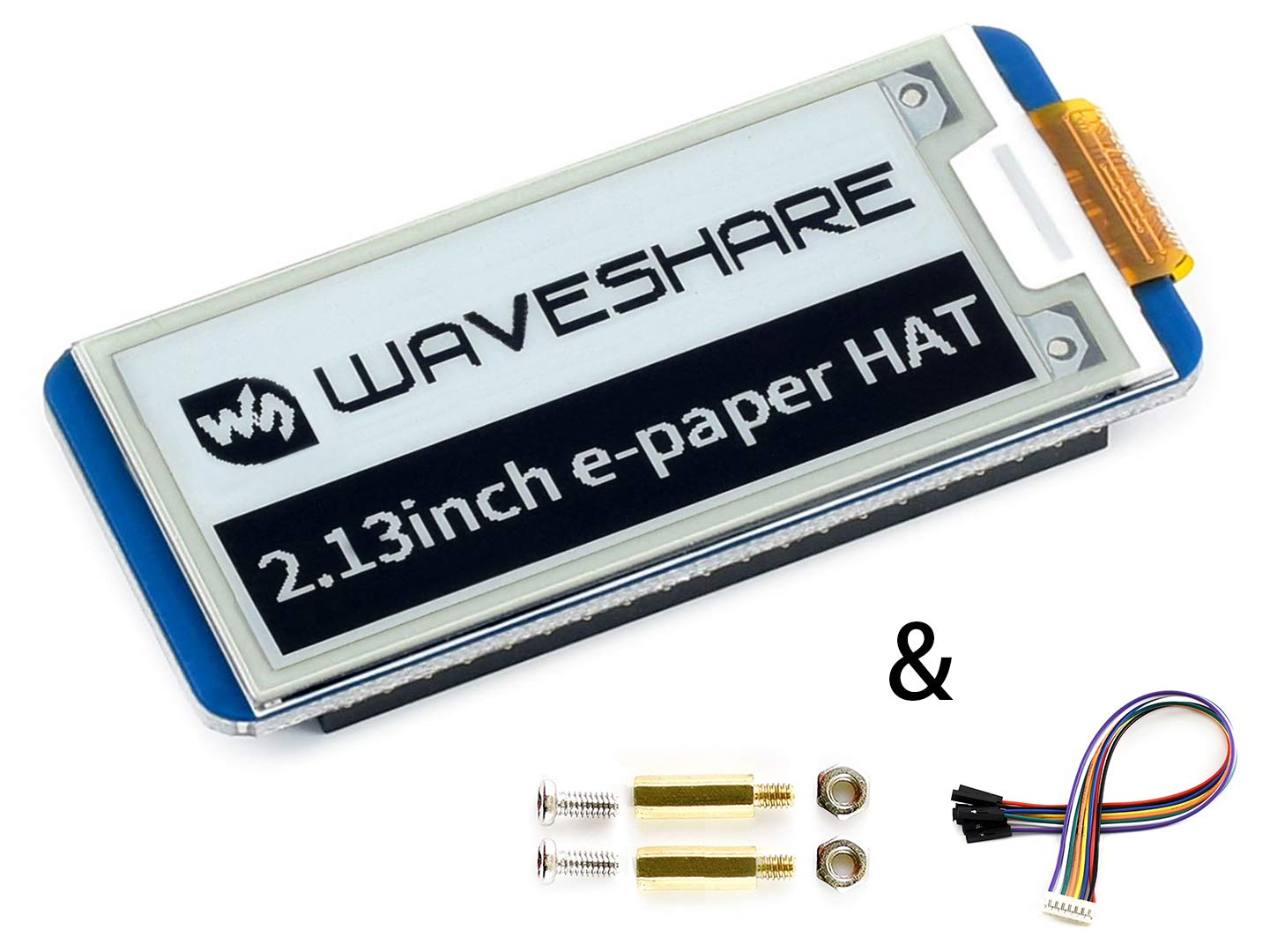

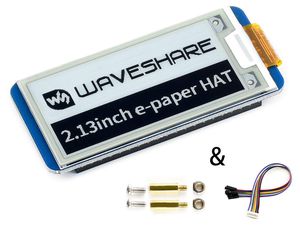

250x122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface,Rev2.1 Version.

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features

No backlight, keeps displaying last content for a long time even when power down

Ultra low power consumption, basically power is only required for refreshing

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.

Onboard voltage translator, compatible with 3.3V/5V MCUs

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V/5V

Interface: SPI

Outline dimension: 65mm × 30.2mm

Display size: 23.71mm × 48.55mm

Dot pitch: 0.194 × 0.194

Resolution: 250 × 122

Display color: black, white

Grey level: 2

Partial refresh time: 0.3s

Full refresh time: 2s

Refresh power: 26.4mW(typ.)

Standby power: <0.017mW

Viewing angle: >170°

Package Content

1.2.13inch e-Paper HAT x1
2.RPi screws pack (2pcs) x1
3.PH2.0 20cm 8Pin x1

We provide technical service,please feel free to send us Amazon message

2.13inch E-Ink Display HAT Rev2.1 Black,White Two-Color 250x122 Pixel E-Paper Screen Module for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH and Jetson Nano SPI Interface Support Partial Refresh
