Description

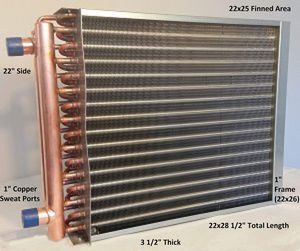

22x25 /220,000 BTUs / 180 PSI For use in your hot air furnace plenum. ***Not recommended for air compressors** Information about our heat exchangers This heat exchanger is ideal for a 22"x 26" plenum or larger. The outlets come out on the 22" side (shown as the vertical side in the picture above) The fin area is 22"x 25" There is a 1" frame on the end opposite the outlets that covers the copper elbows. This makes the area inside of your plenum 1" longer. All exchangers are 3 1/2" thick. Aluminum fins are installed at 12 fines per inch. All exchangers are triple pass design. Tubing is 1/4" copper. All our exchangers include the flat front face mounting for easier installation and increased plenum strength. Our exchangers have 1" copper outlets and can be installed with either sweat fittings or push fit type fittings like sharkbite's. Exchangers from us come with a lifetime warranty, including shipping. Please realize this is not some bogus prorated warranty like some of our competitors offer. Exchangers will work with chilled water also. We stock many sizes, always order the largest size that will fit into your plenum. GPM 22.9 CFM 2683 Outside Dimensions 22"(width)x28.5"(Length from Manifold to Base)x3.5"(Thickness) Installation brackets, SOLD SEPARATELY, for installing water to air heat exchangers inside of furnace plenums. This easy to install kit takes all of the work out of installing a coil. Great for the do it yourselfer or the seasoned installer This kit will work with most coils being sold on Ebay that are 3.5" wide. Check before you buy, but that will cover over 90% of the ones being sold. Even most that are listed as 4" are actually 3.5". These will work with every heat exchanger we sell in our Ebay and website store. We provide a lifetime warranty against manufacturer's defects and corrosion.

22X25 Water to Air Heat Exchanger~1" Copper Ports w/EZ Install Front Flange

Current Price

$209

Average

$209

Min Price

$209

Max Price

$209

Description

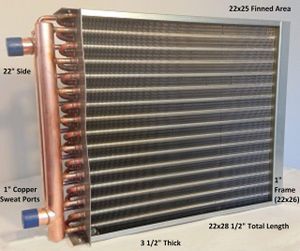

22x25 /220,000 BTUs / 180 PSI For use in your hot air furnace plenum. ***Not recommended for air compressors** Information about our heat exchangers This heat exchanger is ideal for a 22"x 26" plenum or larger. The outlets come out on the 22" side (shown as the vertical side in the picture above) The fin area is 22"x 25" There is a 1" frame on the end opposite the outlets that covers the copper elbows. This makes the area inside of your plenum 1" longer. All exchangers are 3 1/2" thick. Aluminum fins are installed at 12 fines per inch. All exchangers are triple pass design. Tubing is 1/4" copper. All our exchangers include the flat front face mounting for easier installation and increased plenum strength. Our exchangers have 1" copper outlets and can be installed with either sweat fittings or push fit type fittings like sharkbite's. Exchangers from us come with a lifetime warranty, including shipping. Please realize this is not some bogus prorated warranty like some of our competitors offer. Exchangers will work with chilled water also. We stock many sizes, always order the largest size that will fit into your plenum. GPM 22.9 CFM 2683 Outside Dimensions 22"(width)x28.5"(Length from Manifold to Base)x3.5"(Thickness) Installation brackets, SOLD SEPARATELY, for installing water to air heat exchangers inside of furnace plenums. This easy to install kit takes all of the work out of installing a coil. Great for the do it yourselfer or the seasoned installer This kit will work with most coils being sold on Ebay that are 3.5" wide. Check before you buy, but that will cover over 90% of the ones being sold. Even most that are listed as 4" are actually 3.5". These will work with every heat exchanger we sell in our Ebay and website store. We provide a lifetime warranty against manufacturer's defects and corrosion.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
