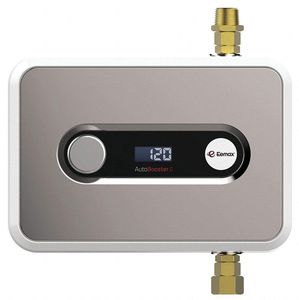

• Operates only when hot water is required and provides up to 45% more hot water capacity, this EEMAX.electric hot water auto booster can be installed on an existing tank water heater or nearby wall. This compact unit features programmable Vacation and Eco modes, an external temperature display, rugged stainless steel heat exchanger, and a field serviceable element

Specification:

• Item: Electric Hot Water Auto Booster
• Water Heater Design: Whole House
• Water Heater Application: General Purpose
• Commercial / Residential: Commercial/Residential
• Watts - Water Heaters: 7200
• Amps - Water Heaters: 30
• Voltage - Water Heaters: 240
• Min. Flow Activation: 0.30 gpm
• Phase - Water Heaters: 1
• Temp. Range - Water Heaters: 80 Degrees to 140 Degrees F
• Water Connection: 3/4" NPT
• Item - Water Heaters: Electric Hot Water Auto Booster
• Temp. Rise @ 1.5 GPM: 32 Degrees F
• Temp. Rise @ 2.5 GPM - Water Heaters: 19.7 Degrees F
• Temp. Rise @ 6.0 GPM: Limited to Thermostatic Setting
• Elements: Replaceable Cartridge Insert
• Default Temperature: 120 Degrees F
• Mounting: Vertical
• Pressure Range: 25 to 150 psi
• Wire Size: 10 AWG
• Height: 11-1/2"
• Width: 8"
• Depth: 3-3/4"
• Features: Increase Deliverable Hot Water Up to 45% Digital User Interface
• Includes: 3 ft. Electric Cable
• Standards: Certified to ANSI/NSF372, ETL Listed to UL 499 and CSA
