Description
A Battery Management System(BMS) is used for protecting your lithium battery pack during charging and discharging. Specification Max. rated discharge current(optional): 25A Max. rated charge current: 25A Cell groups: 10 Voltage: 36V Working temperature: -40~149℉ Temperature control cut-off point: 149℉ Physical dimension: 3.1x1.5x0.4" Tips for electronic hobbyist: 1. It is mandatory that know what kind of rechargeable batteries you are using, Sunkko BMS is only designed for lithium-ion cells, NOT for LiFePO4 cells. 2. The internal resistance as well as full charge voltage of each single cells in the same battery pack should be as consistent as possible. 3. Choose BMS according to the number of series, voltage and discharge current of your battery pack. 4. Make sure you connect the positive and negative poles correctly during your battery pack building process. 5. According to the charge current of the BMS, you also need to prepare a specific battery charger.

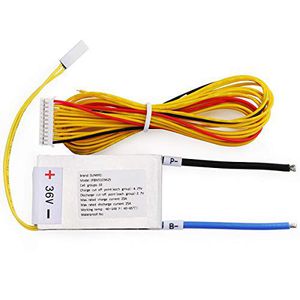

36V 10s Battery Management System(BMS) with 25A Change/Discharge Current, DIY Lithium Battery Pack
Current Price
$20.75
Average
$20.75
Min Price
$20.75
Max Price
$20.75
Price dynamics
0%
Description
A Battery Management System(BMS) is used for protecting your lithium battery pack during charging and discharging. Specification Max. rated discharge current(optional): 25A Max. rated charge current: 25A Cell groups: 10 Voltage: 36V Working temperature: -40~149℉ Temperature control cut-off point: 149℉ Physical dimension: 3.1x1.5x0.4" Tips for electronic hobbyist: 1. It is mandatory that know what kind of rechargeable batteries you are using, Sunkko BMS is only designed for lithium-ion cells, NOT for LiFePO4 cells. 2. The internal resistance as well as full charge voltage of each single cells in the same battery pack should be as consistent as possible. 3. Choose BMS according to the number of series, voltage and discharge current of your battery pack. 4. Make sure you connect the positive and negative poles correctly during your battery pack building process. 5. According to the charge current of the BMS, you also need to prepare a specific battery charger.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
