Description
Electrical Properties and Mechanical Properties:
1. Characteristic impedance: 50 ohm
2. Rated capacitance: 82 pf/m
3. Velocity of propagation: 84 %
4. Operating frequency: 1- 6000 MHz
5. Operating temperature: -25°C ~ +70°C
6. Minimum bending radius: 61 mm
7. VSWR: 1~3000 MHz≤1.15; 1~6000 MHz≤1.20
Cable Construction:
1. Inner conductor: Bare Copper or Copper Clad Aluminum, 1.42mm Diameter
2. Insulation Layer: Foam Polyethylene (FPE), 3.81mm Diameter
3. Outer Conductor: Single-sided Self-adhesive Aluminum Tape Tinned Copper, 4.52mm Diameter
4. Jacket: Polyvinyl Chloride(PVC ) or Polyethylene (PE), 6.10mm Diameter
Package:
1 * Cable
1. Characteristic impedance: 50 ohm
2. Rated capacitance: 82 pf/m
3. Velocity of propagation: 84 %
4. Operating frequency: 1- 6000 MHz
5. Operating temperature: -25°C ~ +70°C
6. Minimum bending radius: 61 mm
7. VSWR: 1~3000 MHz≤1.15; 1~6000 MHz≤1.20
Cable Construction:
1. Inner conductor: Bare Copper or Copper Clad Aluminum, 1.42mm Diameter
2. Insulation Layer: Foam Polyethylene (FPE), 3.81mm Diameter
3. Outer Conductor: Single-sided Self-adhesive Aluminum Tape Tinned Copper, 4.52mm Diameter
4. Jacket: Polyvinyl Chloride(PVC ) or Polyethylene (PE), 6.10mm Diameter
Package:
1 * Cable

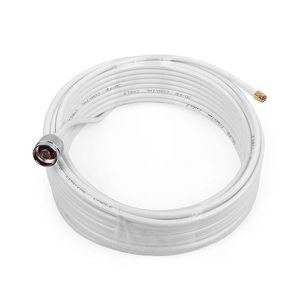

3D-FB Coax Cable N Male to SMA Male RF Cable Microwave Ultra Low Loss Coaxial Cable 49.2 ft/15 Meters
Current Price
$20.41
Average
$20.41
Min Price
$20.41
Max Price
$20.41
Price dynamics
0%
Description
Electrical Properties and Mechanical Properties:
1. Characteristic impedance: 50 ohm
2. Rated capacitance: 82 pf/m
3. Velocity of propagation: 84 %
4. Operating frequency: 1- 6000 MHz
5. Operating temperature: -25°C ~ +70°C
6. Minimum bending radius: 61 mm
7. VSWR: 1~3000 MHz≤1.15; 1~6000 MHz≤1.20
Cable Construction:
1. Inner conductor: Bare Copper or Copper Clad Aluminum, 1.42mm Diameter
2. Insulation Layer: Foam Polyethylene (FPE), 3.81mm Diameter
3. Outer Conductor: Single-sided Self-adhesive Aluminum Tape Tinned Copper, 4.52mm Diameter
4. Jacket: Polyvinyl Chloride(PVC ) or Polyethylene (PE), 6.10mm Diameter
Package:
1 * Cable
