Specifications

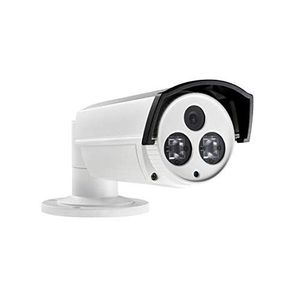

Model Number: HES303-XB
Image Sensor: 1/3″ progressive scan CMOS
Min. illumination: 0.07 lux @ F1.2, AGC ON, 0 lux with IR
Shutter time: 1/25s (1/30s) ~ 1/100.000s
Lens: 4mm@F2.0. angle of view: 75.8° (6mm optional)
lens mount: M12
Day & night: ICR
Digital noise reduction: 3D DNR
Wide Dynamic Range: True WDR, 120db
Backlight compensation: Yes, zone configurable
Video compression: H.264 / MJPEG
H.264 compression profile: Main profile
Bit rate: 32 Kbps ~ 16 Mbps
Dual stream: Yes
Max. image resolution: 3MP CMOS,(2048 x 1536)
Frame rate: 60Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings: Saturation, brightness, contrast, sharpness adjustable through client software or web browser
Network storage: NAS
Alarm trigger: Motion detection, tampering alarm
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
System compatibility: ONVIF, PSIA, CGI
General functionalities: User authentication, watermark
Communication interface: 1 RJ45 10M/ 100 M Ethernet interface
Operating conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 90% or less (non-condensing)
Power supply: 12 VDC +/- 10%, PoE (802.3af)
Power consumption: Max. 7W
Ingress protection: IP66
EXIR rangeup to 150ft.
Dimensions: 3.95″ x 3.46″ x 6.19″
Weight: 700g (1.5 lbs)
