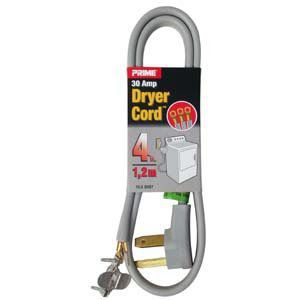

4Ft 10/3 30 Amp, 3-Wire Dryer Cord
Current Price
$28.69
Average
$28.69
Min Price
$28.69
Max Price
$28.69
Price dynamics
0%
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
installing four wire and three wire cords for electric dryers it is important that all electrical is disconnected before the installation of the cord contact with 240 volts can result in serious injury or death the first portion of this video will cover the four wire cord installation and the second part of the video will cover the three wire cord installation as we can see the four wire cord is color coded and the three wire cord is not the green wire on the four wire cord is ground black is l1 or line one white is neutral and red is l2 or line two the center wire on the three wire cord is the neutral and will always be installed on the center of the terminal block the outer wire on the left hand side is line one and the outer wire on the right hand side is line two using a quarter inch nut driver remove the one-quarter inch screw securing the terminal block cover in place next remove
