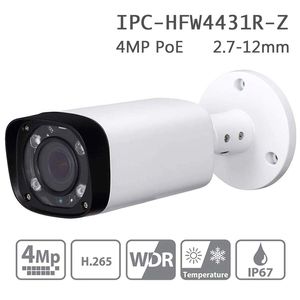

OEM 4MP Bullet IPC-HFW4431R-Z 2.7-12mm VF 4X Optical Zoom PoE IP Camera
Image Sensor: 1/3" 4Megapixel progressive CMOS
Effective Pixels: 2592(H)x1520(V)
Scanning System: Progressive
S/N Ratio: More than 50dB
Video Output: 1 port
Camera Features
Max. IR LEDs Length: 80m
Day/Night: Auto(ICR) / Color / B/W
White Balance: Auto/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D
Privacy Masking: Up to 4 areas
Lens
Focal Length: 2.7~12mm
Max Aperture: F1.4
Focus Control: Auto Focus in IE web
Angle of View H: 92°~28°
Mount Type: Board-in Type
Video
Compression:H.265; H.264; H.264H; H.264B; MJPEG
Frame Rate
Main Stream: M(1~20fps)/1080P/720P(1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate: H.265: 32K ~ 4156Kbps
Audio
Compression: N/A
Interface: N/A
Network
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Compatibility: ONVIF,PSIA,CGI
Max. User Access: 20users
Smart Phone: iPhone, iPad, Android
Auxiliary Interface
Memory Slot: N/A
RS485: N/A
Alarm: N/A
PIR Sensor Range: N/A
General
Power Supply :DC12V, PoE(802.3af)
Power Consumption:Max 8.5W ( Motorized lens: +2W)
Working Environment:-40℃~+60℃
Ingress Protection: IP67
Dimensions: 72mm×80mm×212.8mm
Gross Weight: 0.75KG
