Image Sensor:1/3" 4Megapixel progressive scan CMOS
Effective Pixels:2592(H) x 1520(V)
Minimum Illumination:0.01Lux (Color) 0.001Lux (black/white) 0Lux/F1.4(IR on)
S/N Ratio:More than 56dB
IR Distance:Distance up to 60m
IR On/Off Control:Auto/ Manual
IR LEDs:4
Lens
Lens Type:Motorized/ Auto Iris(DC)
Mount Type:Board-in
Focal Length:2.7mm~12mm
Angle of View:H: 99°~36°, V:47°~17°
Optical Zoom:4x
Intelligence
IVS:Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions:Face Detection
Video
Compression:H.265/H.264H/H.264B/MJPEG
Streaming Capability:3 Streams
Resolution:4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280x960) /720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate:Main Stream: 4M(1~25fps) Sub Stream: D1(1~25fps) Third Stream: 720P(1~25fps)
Bit Rate Control:CBR/VBR
Bit Rate:H.264: 24~10240Kbps H.265: 14~9984Kbps
Smart IR:Support
Digital Zoom:16x
Flip:0°/90°/180°/270°
Mirror:Off / On
Privacy Masking:Off / On (4 Area, Rectangle)
Network
EthernetRJ-45 (10/100Base-T)
Interoperability:ONVIF, PSIA, CGI
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS, Easy4ip,Imou
Smart Phone:IOS, Android
Note:
Camera is actived, default IP: 192.168.1.108,default account: admin, default password: admin

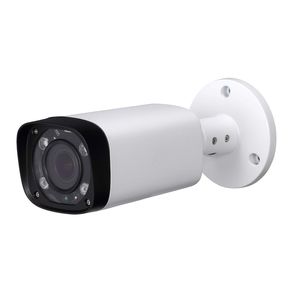

4MP HD Security POE IP Camera,IPC-HFW4431R-Z, 2.7-12mm Motorized Varifocal Lens 4X Optical Zoom, All-Metal Bullet Camera,Smart H.265, 262ft Smart IR Night Vision, WDR DNR, IP67,ONVIF
Image Sensor:1/3" 4Megapixel progressive scan CMOS
Effective Pixels:2592(H) x 1520(V)
Minimum Illumination:0.01Lux (Color) 0.001Lux (black/white) 0Lux/F1.4(IR on)
S/N Ratio:More than 56dB
IR Distance:Distance up to 60m
IR On/Off Control:Auto/ Manual
IR LEDs:4
Lens
Lens Type:Motorized/ Auto Iris(DC)
Mount Type:Board-in
Focal Length:2.7mm~12mm
Angle of View:H: 99°~36°, V:47°~17°
Optical Zoom:4x
Intelligence
IVS:Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions:Face Detection
Video
Compression:H.265/H.264H/H.264B/MJPEG
Streaming Capability:3 Streams
Resolution:4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/1.3M(1280x960) /720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate:Main Stream: 4M(1~25fps) Sub Stream: D1(1~25fps) Third Stream: 720P(1~25fps)
Bit Rate Control:CBR/VBR
Bit Rate:H.264: 24~10240Kbps H.265: 14~9984Kbps
Smart IR:Support
Digital Zoom:16x
Flip:0°/90°/180°/270°
Mirror:Off / On
Privacy Masking:Off / On (4 Area, Rectangle)
Network
EthernetRJ-45 (10/100Base-T)
Interoperability:ONVIF, PSIA, CGI
Web Viewer:IE, Chrome, Firefox, Safari
Management Software:Smart PSS, DSS, Easy4ip,Imou
Smart Phone:IOS, Android
Note:
Camera is actived, default IP: 192.168.1.108,default account: admin, default password: admin
