Description
Camera
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7 Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Number of Preset: 300 Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7 Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Number of Preset: 300 Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)

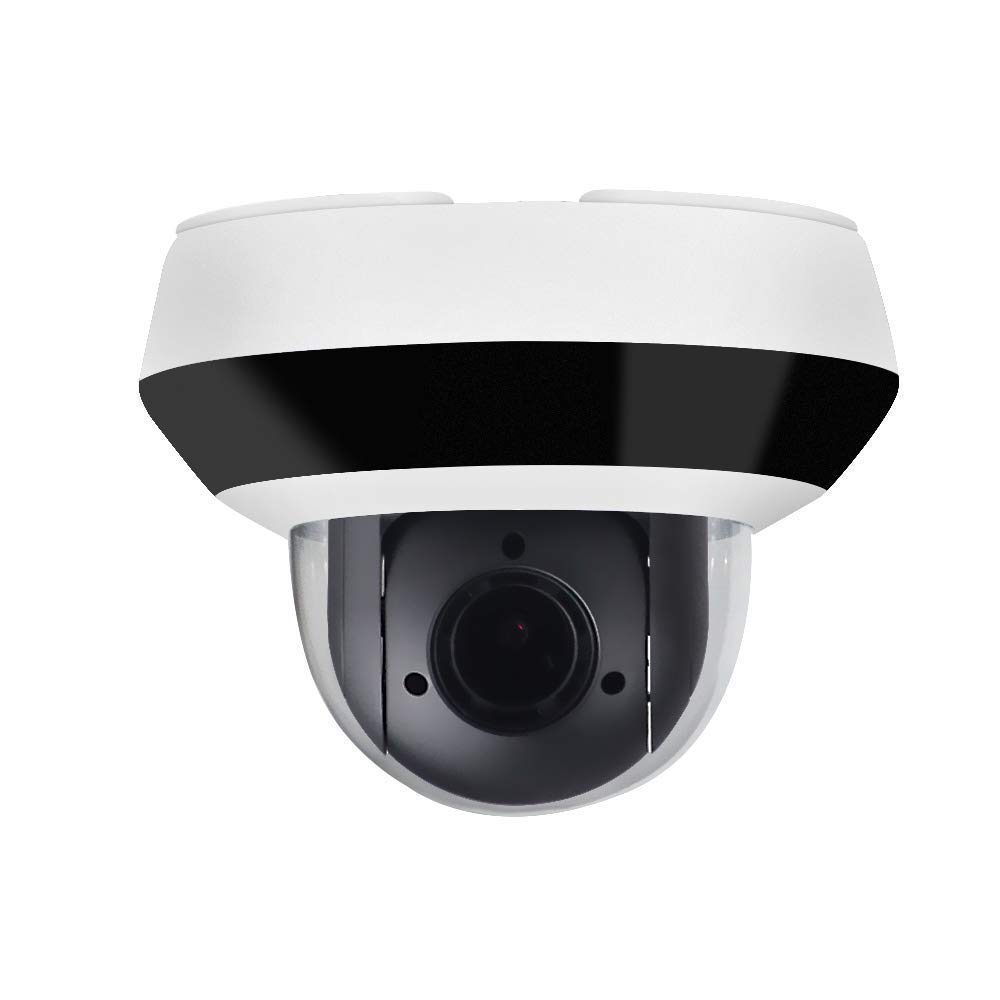

4MP PTZ POE IP Camera OEM DS-2DE2A404IW-DE3, Pan/Tilt/2.8mm~12mm 4X Optical Zoom, 4-Megapixel (2560x1440),Night Vision 20m,SD Card Recording,Outdoor/Home Audio Input Output,IP66 and IK10, H.265+
Price is below average
Current Price
$169.97
Average
$190.97
Min Price
$169.95
Max Price
$217
Price dynamics
11%
Description
Camera
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7 Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Number of Preset: 300 Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)
Image Sensor: 1/3" progressive scan CMOS
Effective Pixels: 2560(H)×1440(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
WDR: 120Db
Day& Night: ICR
Digital Zoom: 16×
Auto Focus: Auto / Semi-automatic / Manual Lens
Focal Length: 2.8 to 12mm, 4× optical zoom
Zoom Speed: Approx. 2s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance: 10 to 1500mm (wide-tele)
Aperture Range: F1.6 to F2.7 Pan & Tilt
Pan Range: 0° to 330°
Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Tilt Range: Tilt: 0°~90°
Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Number of Preset: 300 Infrared
IR irradiation distance: 20m
IR irradiation angle: Adjustable by zoom Input & Output
Audio Input: 1-ch audio input
Audio Output: 1-ch audio output Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 2560 × 1440
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode: OFF/Audio input/Audio output General
Power Supply: 12 VDC & PoE
Power Consumption: Max.: 12 W (Max. 3.9 W for IR)
Protection Level: IP66 Standard, IK10, TVS 4000V Lightning Protection,
Surge Protection and Voltage Transient Protection
Material: Aluminum alloy, PC, PC+ABS
Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.): Approx. 0.53 kg (1.17 lb)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
[Music] [Music] today we're talking about the 2a4 mini pdz this is a fully weatherproof mini PTZ so it can be used in outdoor applications no problem at all but it's also small enough to be used in indoor applications it's still very attractive looks just like a regular dome has a 2:1 eight to twelve millimeter lens on it so good for those small to medium range shots and but basically what in the following videos I'm gonna install this camera next door of this room here in an indoor application and show you daytime and nighttime video and then shortly after that I'm going to take this out to my house and replace an older PTZ and older mini ptc replace it with this one I'm gonna show you the whole install process and to show you the video and everything and you can make your decision whether this camera suits your needs or not but let's take a closer look here this is the camera of cours
