Description
We will test it before shipment.
Reference Weight:0.05kg (0.11lb.)
Working current: 15A; Maximum instantaneous current: 30A; Overcharge Relieve Voltage: 4.15±0.05V; Over Discharge Relieve Voltage: 3.00±0.1V Designed for lithium battery pack of 14.4V, 14.8V and 16.8V, avoid damage during charging or discharge and then prolong the service time of battery pack Support automatic activation function, easy to use Automatically cancel protection after protection conditions restore, convenient to users Multiple protective functions including overcharge protection, overdischarge protection, overcurrent protection and short circuit protection
Specifications:
Overcharge Test Voltage: 4.25±0.025V Overcharge Relieve Voltage: 4.15±0.05V Over Discharge Test Voltage: 2.50±0.08V Over Discharge Relieve Voltage: 3.00±0.1V Over Current: 20~30A Running Current: 15A (need heat sink); 10A(suggested) Termination Conditions: Remove protection condition automatic recovery, without activation(optional charger activation) Function: Overcharge protection, over discharge protection, short circuit protection, over-current protection. Working Temperature: -40 to +85 ℃ (ambient temperature too high, please strengthen cooling) Installation Method: Welding Size: approx. 50x22mm/1.97x0.87" Quantity: 1 Pc Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! No Retail Package Package Includes: 1 x 4S Li-ion Lithium Battery Charger Protection Board

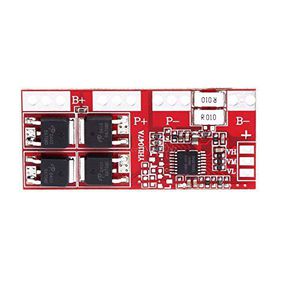

4S 30A Li-ion Lithium Battery 18650 Protection Board Module 144V 148V 168V
Current Price
$10.87
Average
$10.87
Min Price
$10.87
Max Price
$10.87
Price dynamics
0%
Description
We will test it before shipment.
Reference Weight:0.05kg (0.11lb.)
Working current: 15A; Maximum instantaneous current: 30A; Overcharge Relieve Voltage: 4.15±0.05V; Over Discharge Relieve Voltage: 3.00±0.1V Designed for lithium battery pack of 14.4V, 14.8V and 16.8V, avoid damage during charging or discharge and then prolong the service time of battery pack Support automatic activation function, easy to use Automatically cancel protection after protection conditions restore, convenient to users Multiple protective functions including overcharge protection, overdischarge protection, overcurrent protection and short circuit protection
Specifications:
Overcharge Test Voltage: 4.25±0.025V Overcharge Relieve Voltage: 4.15±0.05V Over Discharge Test Voltage: 2.50±0.08V Over Discharge Relieve Voltage: 3.00±0.1V Over Current: 20~30A Running Current: 15A (need heat sink); 10A(suggested) Termination Conditions: Remove protection condition automatic recovery, without activation(optional charger activation) Function: Overcharge protection, over discharge protection, short circuit protection, over-current protection. Working Temperature: -40 to +85 ℃ (ambient temperature too high, please strengthen cooling) Installation Method: Welding Size: approx. 50x22mm/1.97x0.87" Quantity: 1 Pc Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! No Retail Package Package Includes: 1 x 4S Li-ion Lithium Battery Charger Protection Board
