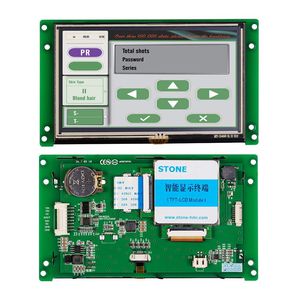

The 5 inch Intelligent TFT LCD Module with Cotex-M4 32bit CPU can be controlled by Any MCU via simple Hex Instruction through UART port.

STONE supply the TOOL BOX Software for engineer to Easy & Visually set various functions on Graphical User Interface, Such as Text, Number, Curve, Image switching, Keyboard, progressbar, slider, Dial, Clock and Touch button, Data storage, USB downloading, Video & Audio.

So it is much Easy for engineer to adopt TFT-LCD Colorful User Interface & Touch control function on various industrial equipments, And it also can reduce much Development Time and Cost.

Easy Usage:

1.Design a group of Beautiful "Graphical User Interface", And Set various application function on GUI by using our Tool Box Software.

2.Connect with customer's MCU through RS232, RS485 or TTL level directly, Plug and Play.

3.Write a program for MCU to control TFT LCD Module via 4 pcs simple Hex Instruction.

For Example: Image Switching Instruction.

             Send "0xA5 0x5A 0x04 0x80 0x03 0x00 0x01", Display Image-01

0xA5 0x5A: Frame Head of each Instruction

0x04:Data length

0x80:Write Instruction to Register

0x03:Image Switching Instruction

0x00 0x01: Image_ID, Sequence number of the image Storage position

Application Area: Medical & Beauty Equipment, Engineering Machinery & Vehicle Equipment, Electronic Instrument, Industrial Control System, Electric Power Industry, Civil Electronic Equipment, Automation Equipment, Traffic Equipment,Etc.
