Description

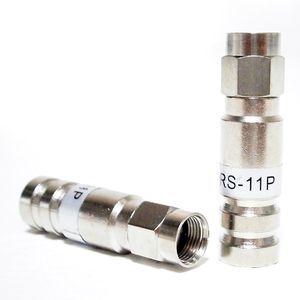

The PCT DRS-11P coaxial cable connector works with RG11 coax cable. It features locking mechanism to retian torque for the longest lasting connections.These connectors are used for easy "F" type terminations in many different coaxial applications including coaxial jumper cables used for antenna, cable, and satellite tv installations. In addition to the torque retaining features, PCT connectors also offer superior sealing protection through dual compression rings and dual O-rings. Our specially designed post allows the O-ring, located in the face of the connector, to seat inside a small chamber allowing a true metal-to-metal contact with both the post and the face of the port. Typically, most moisture enters through the threads of a connector. Our dual O-ring design eliminates the need for an additional weather seal. PCT is one of the few manufactures that maintains a high pass rate on the SCTE IPS moisture migration test without the use of weather boots during testing.
- Features
- plenum compression connector
- Series 11 (RG11) for plenum coaxial cable
- One piece all metal design
- Nickel plated brass construction
- Patented dual 360° compression rings
- Equipped with PCT's patented locking mechanism for increased torque retention
- General Specifications
- Bandwidth: 5 MHz to 3 GHz
- Impedance: 75 Ohms (nominal)
- Return Loss: Minimum -30 dB to 1 GHz
- Shielding Effectiveness: > -100 dB to 1 GHz
- Insertion Loss ≤ 0.2 dB to 1 GHz
- Operating Voltage: 90 V (at 60 Hz continuous AC)
- Operating Temperature: -40 to +140 °F
- Cable Range: RG11 Series Plenum Cable Trishield
- Cable Retention: > 40 lb (18.14kg), Ambient Temperature
- Construction Material: Nickel Plated Brass
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
50 Pieces PCT-TRS-11P Universal RG11 Plenum Compression Connector Nickel Plated Brass Construction 21mm Stroke Length
Current Price
$55
Average
$55
Min Price
$55
Max Price
$55
Description
The PCT DRS-11P coaxial cable connector works with RG11 coax cable. It features locking mechanism to retian torque for the longest lasting connections.These connectors are used for easy "F" type terminations in many different coaxial applications including coaxial jumper cables used for antenna, cable, and satellite tv installations. In addition to the torque retaining features, PCT connectors also offer superior sealing protection through dual compression rings and dual O-rings. Our specially designed post allows the O-ring, located in the face of the connector, to seat inside a small chamber allowing a true metal-to-metal contact with both the post and the face of the port. Typically, most moisture enters through the threads of a connector. Our dual O-ring design eliminates the need for an additional weather seal. PCT is one of the few manufactures that maintains a high pass rate on the SCTE IPS moisture migration test without the use of weather boots during testing.
- Features
- plenum compression connector
- Series 11 (RG11) for plenum coaxial cable
- One piece all metal design
- Nickel plated brass construction
- Patented dual 360° compression rings
- Equipped with PCT's patented locking mechanism for increased torque retention
- General Specifications
- Bandwidth: 5 MHz to 3 GHz
- Impedance: 75 Ohms (nominal)
- Return Loss: Minimum -30 dB to 1 GHz
- Shielding Effectiveness: > -100 dB to 1 GHz
- Insertion Loss ≤ 0.2 dB to 1 GHz
- Operating Voltage: 90 V (at 60 Hz continuous AC)
- Operating Temperature: -40 to +140 °F
- Cable Range: RG11 Series Plenum Cable Trishield
- Cable Retention: > 40 lb (18.14kg), Ambient Temperature
- Construction Material: Nickel Plated Brass
- Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
why carry more than one compression tool when this one does all three types of connectors and cables its all-in-one patented design is perfect for installers who do not have the time to look for multiple compression tools and dies to do the job the interchangeable precision carbon steel die and handle hold up to everyday use and make a tight compress seal 4f B and C and RCA compression connectors rotate the permanently attached cable guide to switch from rg6 and rg59 to thicker RG 11 coaxial cable not to mention the tool has a durable plastic cover for a comfortable grip to use this tool select the type of connector you're going to use remove and rotate the crimp die or plunger and insert it back in with the corresponding connector type facing out the coax cable use must be stripped according to the connectors instructions and the connector must be twisted into place make sure you twist
