Description
The main function
Parameter settings: You can set the processing and operations relating control parameters, Making process to achieve the best condition.
Manual operation: can be achieved manually, jog,back to procedure zero, back to mechanical zero, cleared coordinate operations.
Program Management: Program can create, delete, modify, read, preserve, automatic processing, continuous, and pause.
External Manual: a variety of external functions can be defined Manually,In order to facilitate the use of the freedom to select the input function: the limited input can achieve a variety of user needs.
System components
CNC system mainly consists of the following parts:
High-performance, high-speed 32-bit ARM CPU;
Liquid crystal display (resolution: 320 * 240);
Input / Output (16 channels opto-isolated 10MA inputs, 16 channels opto-isolated pull-down tank 500MA output).
Users machining program memory can be arbitrary Storage in TF card.
Technical indicators:
The smallest unit of data 0.0001mm
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHZ (three-axis simultaneous 50KHZ)
Control axes 4 axes (X, Y, Z, A)
4-axis intermodal and has a four-axis multi-micro multi-segment prospective interpolation control
Appearance and Panel: Dimensions: length 165, width 101, thickness 50
Parameter settings: You can set the processing and operations relating control parameters, Making process to achieve the best condition.
Manual operation: can be achieved manually, jog,back to procedure zero, back to mechanical zero, cleared coordinate operations.
Program Management: Program can create, delete, modify, read, preserve, automatic processing, continuous, and pause.
External Manual: a variety of external functions can be defined Manually,In order to facilitate the use of the freedom to select the input function: the limited input can achieve a variety of user needs.
System components
CNC system mainly consists of the following parts:
High-performance, high-speed 32-bit ARM CPU;
Liquid crystal display (resolution: 320 * 240);
Input / Output (16 channels opto-isolated 10MA inputs, 16 channels opto-isolated pull-down tank 500MA output).
Users machining program memory can be arbitrary Storage in TF card.
Technical indicators:
The smallest unit of data 0.0001mm
The maximum data size ± 99999.999mm
Maximum pulse output frequency 50KHZ (three-axis simultaneous 50KHZ)
Control axes 4 axes (X, Y, Z, A)
4-axis intermodal and has a four-axis multi-micro multi-segment prospective interpolation control
Appearance and Panel: Dimensions: length 165, width 101, thickness 50

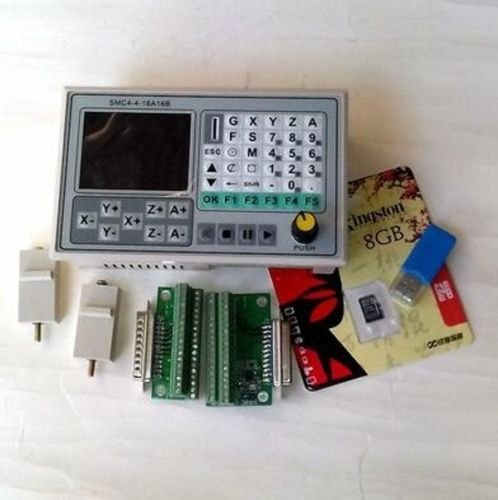

50KHZ Industr CNC 4 Axis Carving Machine Control System Card Control Card
