Description
Specification:

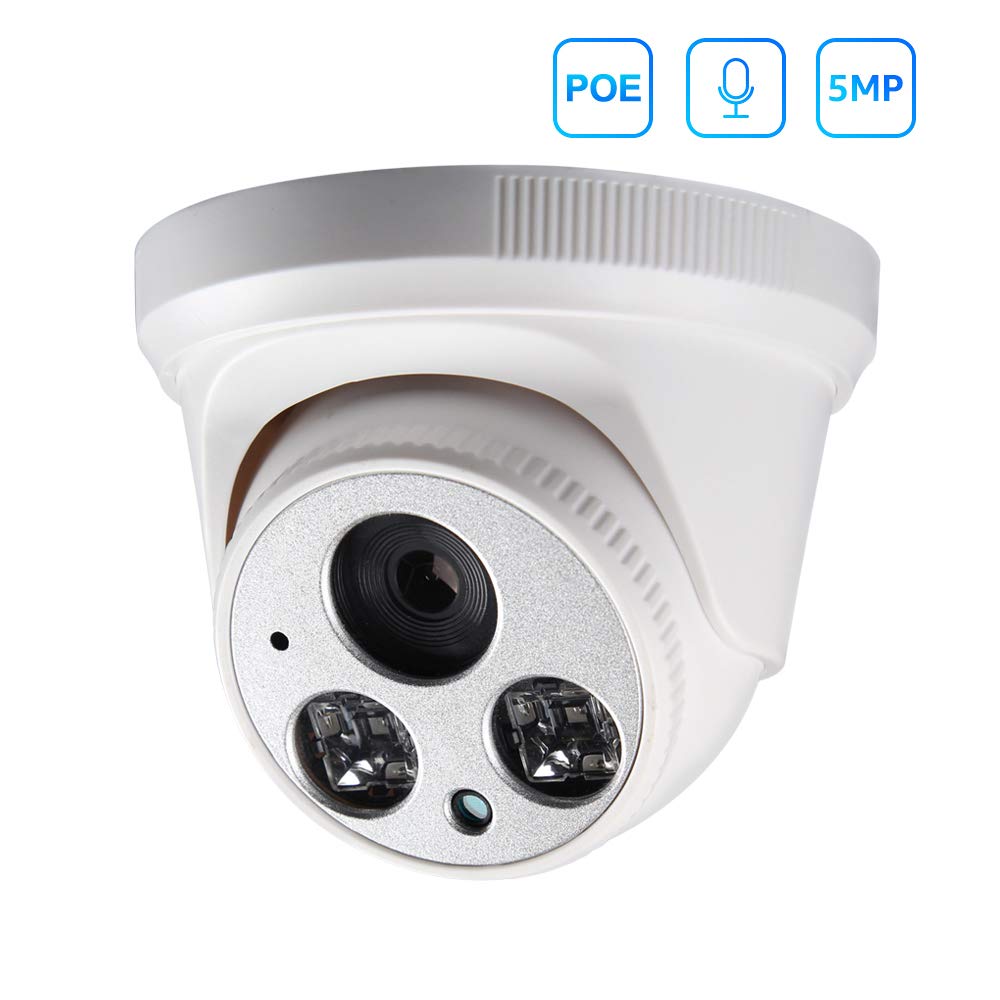

Model: TS-50B60A-50M2C5-G3-E
Image Sensor: 1/2.7"SC5235
Chipset: MSC316DM
Effective Pixels: 5MP
Min. Illumination: Color：0.1Lux@F1.2；B&W：0Lux@F1.2（IR on）
IR Distance: 20M（2 x IR III Array IR Lamps）
Lens: M12 3.6mm fixed lens
Noise Reduction: 3D digital noise reduction
WDR: Support WDR（D-WDR）,＞80db
BLC: Support
Image Settings: Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90 ° / 270 ° image rotation; Automatic, manual color to black and other switches.
Encoding Format: H.265 Main Profile Encoding; H.264 Baseline/ Main Profile/High Profile Encoding
Main stream: 2592×1944, 15 fps; 2592×1520, 20 fps; 2048×1536, 25 fps
Sub stream: 704*576, 15-25 fps; 640*480, 15-25 fps
Video Bit Rate: 32Kbps-16Mbps continuously adjustable, support CBR / VBR
Overlay: Channel name, date time, steam info; position is adjustable.
Audio: Built-in Mic
Audio Standard: G.711-u/G.711-a
Data Storage: Video、Image
Storage Mechanism: Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data Transmission: FTP, E-mail, Browser, Management software
Protocol: TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP,ONVIF
Access Standard: ONVIF Protocol; SDK
Smart Functions: Target count, item left/lost, area detection, line crossing;
Client Browse: Support IE6.0 and above browser, support 8 users concurrent access (MAX)
P2P Remote: AEeye2.0; Supports iPhone, iPad, Android system smartphone; Support Windows 7 and above computer client, Apple MAC computer client
Network: RJ45, 10M/100M network adaptive
Operation T/H: -20°C ~ 55°C/0﹪-90﹪
Power Supply: DC12V /POE
Power Consumption: <10W (MAX)
Package include:
1 * IP Camera
1 * 1m Network Cable
1 * Waterproof Lid
1 * Screws Bag
