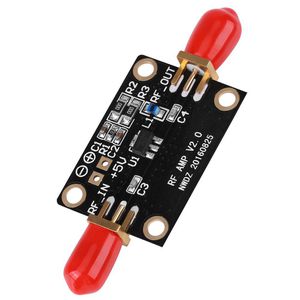

This RF amplifier module features wide frequency range, high gain, and low noise.
This product can be applied to various rf receive front-end and increases communication distance. Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification.

Specifications:

Power supply voltage: typical +5V (typical current value 75mA)

Gain: typical value 20dB @2G,  input output impedance: 50 ohms

Maximum output power: P1db 20dBm (@2ghz

Input signal: <+10dBm (> +10dBm input signal has been distortion)

Bandwidth: 0.05-6Ghz (different frequencies of gain are different)

Noise coefficient: 4.1dB @1Ghz

Size: 3.2 x2.3cm/1.3 x 0.9 inch

Weight: 5g

File download:

http://pan.baidu.com/s/1bpCmfuf(Password:hcow)

Applications:
PA Driver Amplifier
Cellular, PCS, GSM, UMTS
Wideband Intrumentation
Wireless Data, Satellite Terminals

Package Included:

1 x RF Amplifier
