Description
PACKAGE INCLUDING:
◇A. 7" WIRED SINGLE VIEW MONITOR*1
◇B. CCD WATERPROOF CAMERA*2
◇C. 15METERS EXTENSION CABLE*1
10METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1
MONITOR SPECIFICATION:
◇7 Inch Wired Color Single View LCD monitor
◇Resolution: 800 *3(RGB)*480
◇TV System: NTSC/PAL
◇Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
◇Support 2 cameras video input
◇Separate trigger control wire for one camera
◇Monitor will automatic switch-over the image to second camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and
will switch to back up camera image,Trigger end after shutdown
◇Working voltage: DC12V

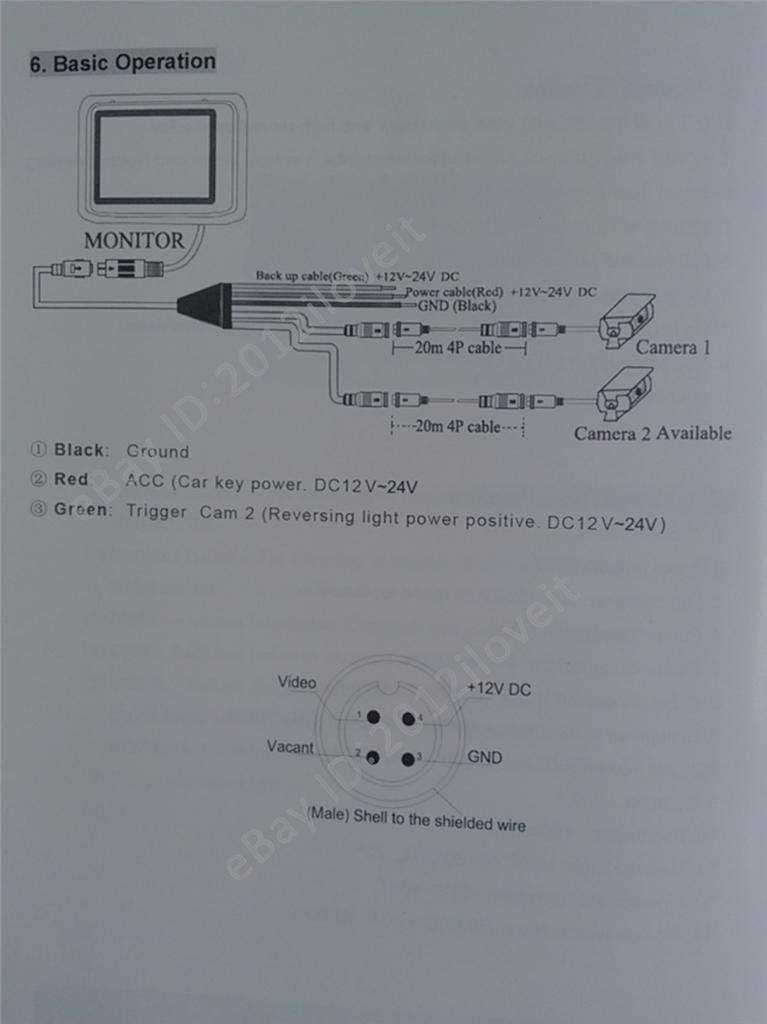

◇Built-in short-circuit protector(When installing and connecting the kit, people connects the
female 4-pin connectors to the male one from the camera and monitor, they sometimes connect the video pin of the
camera to the power pin of the monitor. It may cause a short-cut, the built-in protector may keep the monitor
away from being burnt.)
CAMERA SPECIFICATIONS:
◇sensor:1/3"SONY Color CCD
◇Resolution :420 TV lines
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 9PCS
◇IR Distance: 35ft
◇Waterproof Rate:IP69K,
◇Shell material:aluminum alloy(camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
◇Color:Black
◇A. 7" WIRED SINGLE VIEW MONITOR*1
◇B. CCD WATERPROOF CAMERA*2
◇C. 15METERS EXTENSION CABLE*1
10METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1
MONITOR SPECIFICATION:
◇7 Inch Wired Color Single View LCD monitor
◇Resolution: 800 *3(RGB)*480
◇TV System: NTSC/PAL
◇Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
◇Support 2 cameras video input
◇Separate trigger control wire for one camera
◇Monitor will automatic switch-over the image to second camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and
will switch to back up camera image,Trigger end after shutdown
◇Working voltage: DC12V
◇Built-in short-circuit protector(When installing and connecting the kit, people connects the
female 4-pin connectors to the male one from the camera and monitor, they sometimes connect the video pin of the
camera to the power pin of the monitor. It may cause a short-cut, the built-in protector may keep the monitor
away from being burnt.)
CAMERA SPECIFICATIONS:
◇sensor:1/3"SONY Color CCD
◇Resolution :420 TV lines
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 9PCS
◇IR Distance: 35ft
◇Waterproof Rate:IP69K,
◇Shell material:aluminum alloy(camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
◇Color:Black
7" REAR VIEW BACKUP CAMERA CAB OBSERVATION SYSTEM FOR AGRICULTURE EQUIPMENTS
Current Price
$189
Average
$189
Min Price
$189
Max Price
$189
Description
PACKAGE INCLUDING:
◇A. 7" WIRED SINGLE VIEW MONITOR*1
◇B. CCD WATERPROOF CAMERA*2
◇C. 15METERS EXTENSION CABLE*1
10METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1
MONITOR SPECIFICATION:
◇7 Inch Wired Color Single View LCD monitor
◇Resolution: 800 *3(RGB)*480
◇TV System: NTSC/PAL
◇Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
◇Support 2 cameras video input
◇Separate trigger control wire for one camera
◇Monitor will automatic switch-over the image to second camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and
will switch to back up camera image,Trigger end after shutdown
◇Working voltage: DC12V
◇Built-in short-circuit protector(When installing and connecting the kit, people connects the
female 4-pin connectors to the male one from the camera and monitor, they sometimes connect the video pin of the
camera to the power pin of the monitor. It may cause a short-cut, the built-in protector may keep the monitor
away from being burnt.)
CAMERA SPECIFICATIONS:
◇sensor:1/3"SONY Color CCD
◇Resolution :420 TV lines
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 9PCS
◇IR Distance: 35ft
◇Waterproof Rate:IP69K,
◇Shell material:aluminum alloy(camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
◇Color:Black
◇A. 7" WIRED SINGLE VIEW MONITOR*1
◇B. CCD WATERPROOF CAMERA*2
◇C. 15METERS EXTENSION CABLE*1
10METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1
MONITOR SPECIFICATION:
◇7 Inch Wired Color Single View LCD monitor
◇Resolution: 800 *3(RGB)*480
◇TV System: NTSC/PAL
◇Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian
◇Support 2 cameras video input
◇Separate trigger control wire for one camera
◇Monitor will automatic switch-over the image to second camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and
will switch to back up camera image,Trigger end after shutdown
◇Working voltage: DC12V
◇Built-in short-circuit protector(When installing and connecting the kit, people connects the
female 4-pin connectors to the male one from the camera and monitor, they sometimes connect the video pin of the
camera to the power pin of the monitor. It may cause a short-cut, the built-in protector may keep the monitor
away from being burnt.)
CAMERA SPECIFICATIONS:
◇sensor:1/3"SONY Color CCD
◇Resolution :420 TV lines
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 9PCS
◇IR Distance: 35ft
◇Waterproof Rate:IP69K,
◇Shell material:aluminum alloy(camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
◇Color:Black
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
