Description

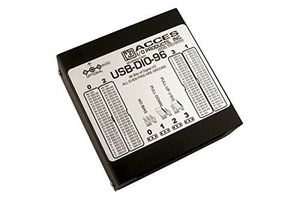

Our USB-DIO-96 is a 96 Channel USB Digital Input/Output Module
Features:
- High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
- 96 lines of digital I/O
- High retention type B USB connector
- Mini USB header connector in parallel with type B for stacking and embedded applications
- Twelve (12) 8-bit ports independently selectable for inputs or outputs
- All I/O lines buffered with 32 mA source, 64mA sink current capabilities
- I/O Buffers can be enabled or tri-stated under program control
- Drivers and sample application provided
- Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating
- Jumper selectable power provided via USB cable or external power supply for higher source current capabilities
- Resettable fused +5VDC outputs per 50-pin connector
- Standard 50-pin IDC-type shrouded connectors with key
- PC/104 size (3.550 by 3.775 in.)
- Rugged industrial enclosure
- Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
- Labview VI driver
- Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
Factory Options:
- Board only version with no enclosure
- External power components and regulated AC/DC adapter
- Extended operating temperature (-40° to +85°C)
- DIN rail mounting provision
- Screw terminals for power input provide high retention connection
- Wide Input power from 7VDC to 36VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
For more information about this product please visit our website: http://accesio.com/?p=../usb/usb-dio-96.html
Features:
- High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
- 96 lines of digital I/O
- High retention type B USB connector
- Mini USB header connector in parallel with type B for stacking and embedded applications
- Twelve (12) 8-bit ports independently selectable for inputs or outputs
- All I/O lines buffered with 32 mA source, 64mA sink current capabilities
- I/O Buffers can be enabled or tri-stated under program control
- Drivers and sample application provided
- Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating
- Jumper selectable power provided via USB cable or external power supply for higher source current capabilities
- Resettable fused +5VDC outputs per 50-pin connector
- Standard 50-pin IDC-type shrouded connectors with key
- PC/104 size (3.550 by 3.775 in.)
- Rugged industrial enclosure
- Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
- Labview VI driver
- Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
Factory Options:
- Board only version with no enclosure
- External power components and regulated AC/DC adapter
- Extended operating temperature (-40° to +85°C)
- DIN rail mounting provision
- Screw terminals for power input provide high retention connection
- Wide Input power from 7VDC to 36VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
For more information about this product please visit our website: http://accesio.com/?p=../usb/usb-dio-96.html
96 Channel USB Digital Input/Output Module (USB-DIO-96)
Current Price
$295
Average
$295
Min Price
$295
Max Price
$295
Description
Our USB-DIO-96 is a 96 Channel USB Digital Input/Output Module
Features:
- High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
- 96 lines of digital I/O
- High retention type B USB connector
- Mini USB header connector in parallel with type B for stacking and embedded applications
- Twelve (12) 8-bit ports independently selectable for inputs or outputs
- All I/O lines buffered with 32 mA source, 64mA sink current capabilities
- I/O Buffers can be enabled or tri-stated under program control
- Drivers and sample application provided
- Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating
- Jumper selectable power provided via USB cable or external power supply for higher source current capabilities
- Resettable fused +5VDC outputs per 50-pin connector
- Standard 50-pin IDC-type shrouded connectors with key
- PC/104 size (3.550 by 3.775 in.)
- Rugged industrial enclosure
- Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
- Labview VI driver
- Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
Factory Options:
- Board only version with no enclosure
- External power components and regulated AC/DC adapter
- Extended operating temperature (-40° to +85°C)
- DIN rail mounting provision
- Screw terminals for power input provide high retention connection
- Wide Input power from 7VDC to 36VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
For more information about this product please visit our website: http://accesio.com/?p=../usb/usb-dio-96.html
Features:
- High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
- 96 lines of digital I/O
- High retention type B USB connector
- Mini USB header connector in parallel with type B for stacking and embedded applications
- Twelve (12) 8-bit ports independently selectable for inputs or outputs
- All I/O lines buffered with 32 mA source, 64mA sink current capabilities
- I/O Buffers can be enabled or tri-stated under program control
- Drivers and sample application provided
- Jumper selectable I/O pulled up to 5V for contact monitoring, pulled down to ground or floating
- Jumper selectable power provided via USB cable or external power supply for higher source current capabilities
- Resettable fused +5VDC outputs per 50-pin connector
- Standard 50-pin IDC-type shrouded connectors with key
- PC/104 size (3.550 by 3.775 in.)
- Rugged industrial enclosure
- Compatible with industry standard I/O racks like Grayhill, Opto 22, Western Reserve Controls, etc.
- Labview VI driver
- Now with Firmware 2.0 features!
- Onboard Watchdog Timer, configurable power-on defaults, digital input debouncing and latching, digital output Pulse Width Modulation (PWM) and Matrix Mapping
Factory Options:
- Board only version with no enclosure
- External power components and regulated AC/DC adapter
- Extended operating temperature (-40° to +85°C)
- DIN rail mounting provision
- Screw terminals for power input provide high retention connection
- Wide Input power from 7VDC to 36VDC at the DC power jack or screw terminals
- RoHS Available. Please contact us for ordering information
For more information about this product please visit our website: http://accesio.com/?p=../usb/usb-dio-96.html
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
