Description
Basic Information
Lithography:22nm
Size:187x111x50mm
Power Consumption:TDP 15W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Audio Solution:Realtek ALC662 HD Audio
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Integrated Graphics:Intel HD Graphics 4400
Onboard CPU:Intel Core i3-4005U SOC Processor (Haswell, Dual Core, 3M Cache, 1.70 GHz)
Memory:4GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x DDR3L DIMM Memory Slot, Up to 8GB Memory
Hard Disk:128GB mSATA SSD - Support 2.5" SATA SSD/HDD
Wireless:Support
Front I/O:
1 x Power on/off Button
1 x COM (RS-232)
1 x HD Video
2 x USB 3.0
2 x USB 2.0
Internal Connectors:
1 x Minipcie Port (For mSATA SSD)
1 x Minipcie Port (For WiFi/Bluetooth Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA Power Connector
1 x Automatically Boot Jumper
1 x SIM Card Slot
Rear I/O:
1 x DV 12V DC Input
1 x Power LED
1 x HDD LED
4 x Intel RJ-45 Port for Gigabit LAN
1 x Speak Out Connector
1 x Mic In Connector
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in it. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty period is one year from you purchase.
2) Customization or printed logo can be acceptable.

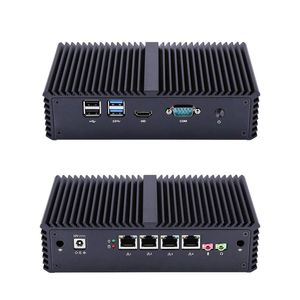

Qotom-Q330G4 Fanless Mini PC with 4 Ethernet LAN Support Linux Intel Core i3 4005U Computer (4G RAM + 128G SSD)
Price is below average
Current Price
$249.33
Average
$290.26
Min Price
$214.33
Max Price
$379.99
Price dynamics
14%
Description
Basic Information
Lithography:22nm
Size:187x111x50mm
Power Consumption:TDP 15W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Audio Solution:Realtek ALC662 HD Audio
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Integrated Graphics:Intel HD Graphics 4400
Onboard CPU:Intel Core i3-4005U SOC Processor (Haswell, Dual Core, 3M Cache, 1.70 GHz)
Memory:4GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x DDR3L DIMM Memory Slot, Up to 8GB Memory
Hard Disk:128GB mSATA SSD - Support 2.5" SATA SSD/HDD
Wireless:Support
Front I/O:
1 x Power on/off Button
1 x COM (RS-232)
1 x HD Video
2 x USB 3.0
2 x USB 2.0
Internal Connectors:
1 x Minipcie Port (For mSATA SSD)
1 x Minipcie Port (For WiFi/Bluetooth Module)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA Power Connector
1 x Automatically Boot Jumper
1 x SIM Card Slot
Rear I/O:
1 x DV 12V DC Input
1 x Power LED
1 x HDD LED
4 x Intel RJ-45 Port for Gigabit LAN
1 x Speak Out Connector
1 x Mic In Connector
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
Please Note:
1) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in it. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty period is one year from you purchase.
2) Customization or printed logo can be acceptable.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
so we do a lot of pfSense builds and a lot of times for my corporate clients I just buy the pfSense boxes as they come with support and I really never had a problem with them really salad but a lot of people ask me what else can I use and what can I save a few dollars on well these are pretty cool these are the pro tect Lee I think that's how you say pro tect li model fw 1048 you can buy them on Amazon here and they're not generally expensive now this is the firewall microbe appliance with Gigabit LAN ports now the specs on this are pretty good it is a quad core Bay Trail processor a km SATA 4 gigs of ddr3 RAM and four Gigabit Ethernet ports now as you can see these boxes are passively cooled and I'll take it apart and show you kind of the innards of it but it's pretty neat those no fans complete silent operation you get in the box the unit power supply power cord mounting plate so you
