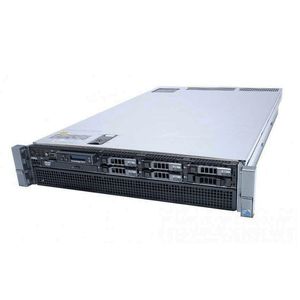

Enterprise Dell PowerEdge R810 4x2.26GHz 8-Core X7560 256GB RAM H700 6G 2PS

[Music] hello i'm scott flowers from cloud ninjas and today we're here to talk about dell poweredge r810 server memory for starters the r810 has 32 memory slots there are four cpus meaning there are eight dimms per cpu there are four memory channels per cpu meaning you have two dimms per memory channel with the r810 you're allowed to use one type of memory in the future gens you can use load reduce memory but with the r810 you are using ecc registered memory you can max out at one terabyte loading all 32 slots with 32 gigabyte modules now the difference in the max is the speed and that depends on the cpu you use if you use e7 procs then you can use 10600 also known as 1333mhz but if you're using the 6500 or 7500 intel series cpus then you are using an 8500 module also known as 1066. when you're using a 1066 this is going to be a quad rank module which makes it great that you're only usi
