Description

Specifications:

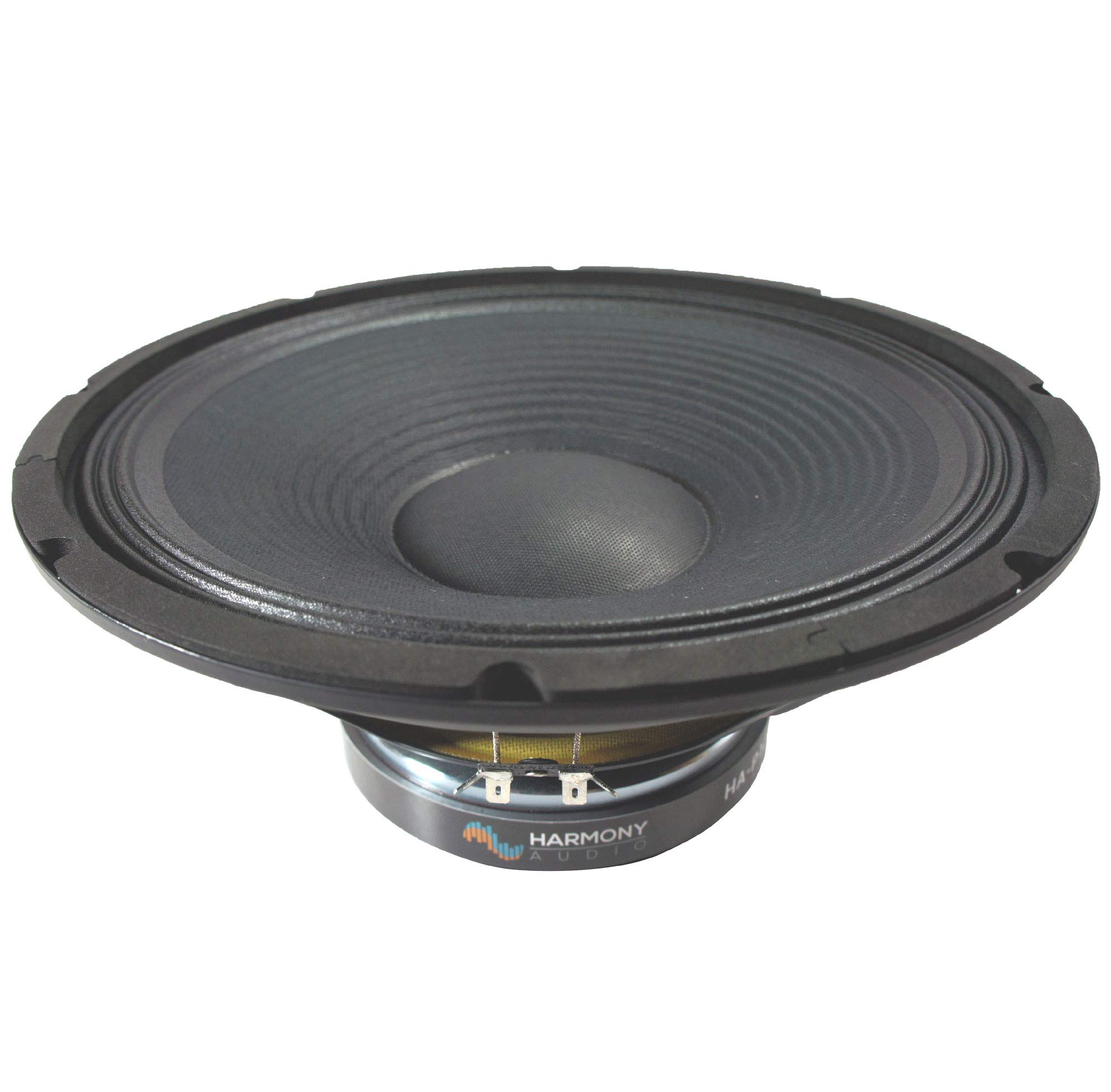

12" Pro Audio Midrange PA Woofer

Power Handling:

Peak: 500 watts

RMS: 100-250 watts

Sensitivity: 94.1dB

Frequency Response: 53Hz-4kHz

Magnet Weight: 48 Ounces

2" Copper Voice Coil

Single 8 Ohm

Features:

Fiber Reinforced Paper Cone

Ribbed Cloth Surround

Rolled Steel Basket

High Flux Ferrite Magnet

Detailed Specifications:

Voice Coil Diameter: 50.8mm
Voice Coil Height: 13.2mm
HE Magnetic Gap Height: 8mm
Voice Coil Bobbin: TIL
Xmax: 2.6mm
Magnet Layers: 2
Cms (Suspension Compliance): 0.166
Qms (Mechanical Q Factor): 5.98
Qes (Electrical Q Factor): 0.59
Qts (Total Q Factor): 0.54
Mms (Moving Mass): 54.12
Vas (Equivalent Volume of Compliance): 66.6 L
Rs (Resonant Frequency): 53 Hz
SD (Effective Piston Area): 530.9 cm2

Harmony HA-P12WS8 Replacement 12" PA Speaker 8 Ohm Woofer for EV ZLX-12P

Get price

Current Price

$49.99

Average

$49.99

Min Price

$49.99

Max Price

$49.99

Description

Specifications:

12" Pro Audio Midrange PA Woofer

Power Handling:

Peak: 500 watts

RMS: 100-250 watts

Sensitivity: 94.1dB

Frequency Response: 53Hz-4kHz

Magnet Weight: 48 Ounces

2" Copper Voice Coil

Single 8 Ohm

Features:

Fiber Reinforced Paper Cone

Ribbed Cloth Surround

Rolled Steel Basket

High Flux Ferrite Magnet

Detailed Specifications:

Voice Coil Diameter: 50.8mm
Voice Coil Height: 13.2mm
HE Magnetic Gap Height: 8mm
Voice Coil Bobbin: TIL
Xmax: 2.6mm
Magnet Layers: 2
Cms (Suspension Compliance): 0.166
Qms (Mechanical Q Factor): 5.98
Qes (Electrical Q Factor): 0.59
Qts (Total Q Factor): 0.54
Mms (Moving Mass): 54.12
Vas (Equivalent Volume of Compliance): 66.6 L
Rs (Resonant Frequency): 53 Hz
SD (Effective Piston Area): 530.9 cm2

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
