Description
Basic Information
Chipset:By CPU
Size:134 x 126 x 47mm
Power Consumption: 10W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Processor Graphics:Intel HD Graphics
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Onboard CPU:Intel Celeron BayTrail SOC J1900 Quad Core Processor 2.0GHz,Up To 2.42GHz 2M Cache
Memory:8GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x Memory Slot, Up to 8GB Memory
Hard Disk:16GB mSATA SSD - Support 2.5" SATA HDD
Wireless:150M WiFi (Only for USB Device)

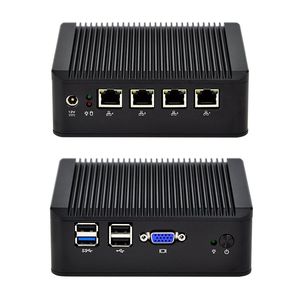

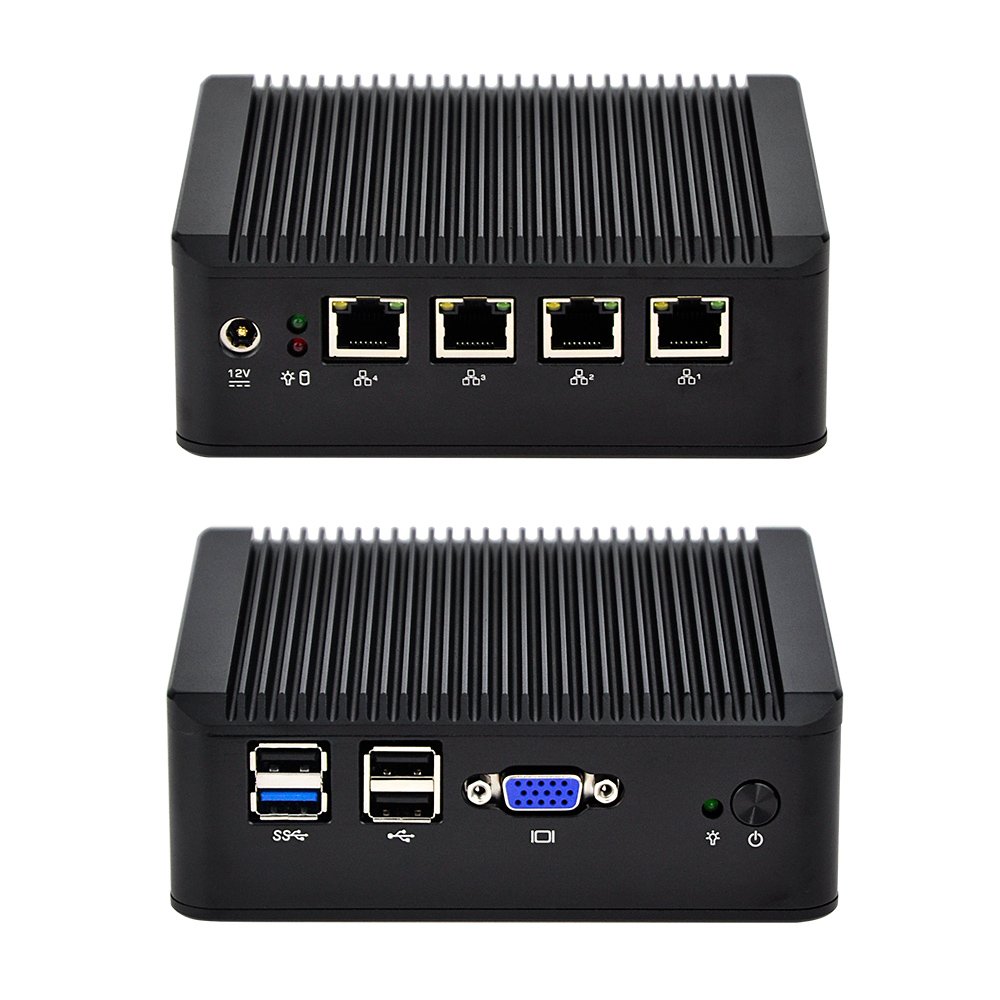

Front I/O:
1 x Power on/off Button
1 x Power LED
3 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Connectors:
1 x Minipcie (For mSATA SSD)
1 x Minipcie (For USB Device)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA
1 x SATA Power
1 x Automatically Boot Jumper
1 x RS232 Header (Optional)
1 x SIM Card Slot (Optional)
Rear I/O:
1 x DV 12V Input
1 x Power LED
1 x HDD LED
4 x RJ-45
1 x WiFi (For USB Device)
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
2 x Antennas
Please Note:
1) It only supports AP-mode.
2) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
3) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in this computer. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty is one year from you purchase.
2) This device fits for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, IDS/IPS, etc.
Qotom-Q190G4U-S02 Quad LAN Fanless Mini Computer Quad Core Intel J1900 Router Firewall Mini PC (8G RAM + 16G SSD + WiFi)
Price is below average
Current Price
$197.89
Average
$209.7
Min Price
$197.89
Max Price
$225.56
Price dynamics
6%
Description
Basic Information
Chipset:By CPU
Size:134 x 126 x 47mm
Power Consumption: 10W
Operating Temp.:0~50 Degrees Celsius
Non-Operating Temp.:-20~80 Degrees Celsius
Processor Graphics:Intel HD Graphics
Onboard LAN:4 x Intel I211-AT Gigabit LAN
Onboard CPU:Intel Celeron BayTrail SOC J1900 Quad Core Processor 2.0GHz,Up To 2.42GHz 2M Cache
Memory:8GB DDR3L SO-DIMM 1333/1600 MHz 1.35V, 1 x Memory Slot, Up to 8GB Memory
Hard Disk:16GB mSATA SSD - Support 2.5" SATA HDD
Wireless:150M WiFi (Only for USB Device)
Front I/O:
1 x Power on/off Button
1 x Power LED
3 x USB 2.0
1 x USB 3.0
1 x VGA
Internal Connectors:
1 x Minipcie (For mSATA SSD)
1 x Minipcie (For USB Device)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA
1 x SATA Power
1 x Automatically Boot Jumper
1 x RS232 Header (Optional)
1 x SIM Card Slot (Optional)
Rear I/O:
1 x DV 12V Input
1 x Power LED
1 x HDD LED
4 x RJ-45
1 x WiFi (For USB Device)
Package Included:
1 x Mini PC
1 x Screws
1 x Power Supply
1 x VESA Mount Bracket
2 x Antennas
Please Note:
1) It only supports AP-mode.
2) It will be come with Pre-installation Unactivated Windows 7 in English for test without any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
3) Mini-PCIE cann't support WiFi and 3G/4G module at the same time in this computer. Half-length Mini-PCIE is only for WiFi, full-length is only for 3G/4G. It is Half-length by default.
Warranty:
1) Warranty is one year from you purchase.
2) This device fits for a LAN or WAN router, firewall, proxy, WiFi access point, VPN appliance, DHCP Server, DNS Server, IDS/IPS, etc.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
