Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm
7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)
Package Including:
1 x Camera with power adapter
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 7 inch HDMI LCD Monitor
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm
7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)
Package Including:
1 x Camera with power adapter
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 7 inch HDMI LCD Monitor

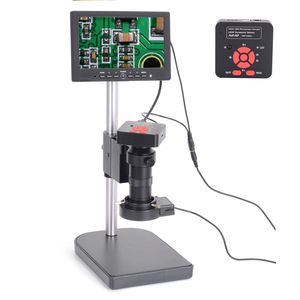

HAYEAR 16MP Full HD 1080P 60FPS HDMI USB Industry Microscope Video Camera 100X Zoom C-Mount Lens 40 LED Ring Light 7" inch HDMI LCD Monitor
Current Price
$318
Average
$314.08
Min Price
$268
Max Price
$378
Price dynamics
1%
Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm
7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)
Package Including:
1 x Camera with power adapter
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 7 inch HDMI LCD Monitor
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
Specification:
Image sensor:16 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55mm-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
40 bright white LED bulbs ,6W, Adjust Bright
100,000 hours of life
Intense and focused shadow-free illumination
Variable intensity control
Power input: 100-240V, 50-60HZ, auto switching
with Female thread M28*0.75
Suit for the dia of the lens: 16mm-46mm
7" LCD Display Monitor
Screen Size: 7 inch
Panel type: a-Si TFT-LCD
Display mode: TN
Contrast ratio: 500:1 (Typ.)
Resolution: 1024x768; 800(RGB)×480 Pixels
Active area:154.08×85.92 mm
Response time: 10/15 (Typ.)(Tr/Td) (ms)
Panel brightness: 350 cd/m2 (Typ.)
Package Including:
1 x Camera with power adapter
1 x USB line
1 x Software DISC
1 x Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 7 inch HDMI LCD Monitor
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
welcome to Nouveau log you might recognize the microscope behind me it's the trinocular microscope I reviewed envelope 282 and I must say it's a great tool to have on the workbench especially if you feel like your eyesight is getting weaker but not necessarily only because of that also if you're working with small components like Oh 402 it's much easier to work with something like this or if you're doing micro soldering board repair or modern gadgets you really need one of these microscopes however I have a problem with the camera that shipped with the microscope the image that comes out of this camera is too black I can't really see anything on a PCB with this camera and I am in contact with banggood which supplied the microscope to fix the problem they are in contact with their supplier and are trying to solve this problem but due to the kernel virus infection in China they said they'
