Description
Qotom-Q190G4N Baytrail J1900 4 Lan mini pc computer
Case S07: Size: 156 x 128 x 37mm - support SSD ( MSATA / SATA)
Case S08: Size: 156 x 128 x 47mm - support SSD ( MSATA / SATA) and HDD (2.5 inch SATA HDD)
We send S07 case by default. If you need S08 case, pls leave us a message, thanks!
Onboard CPU: Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Memory: Support DDR3L 1333/1600 MHz 1.35V
-1 x DDR3L DIMM Memory Slot , max. supports up to 8GB Memory
Hard Disk: Support mSATA SSD or 2.5 inch SATA HDD
Chipset: Intel Soc Chipset
Onboard VGA: Intel HD Graphics
Onboard LAN: 4 x Intel I211AT - 10/100/1000 Controller
WiFi: Optional (Only support USB Signal Wireless Card)
Power Consumption: 10W
Operating System: Support Windows 7/Windows 8/Windows 10/Linux/OPNsense etc.(Not support Windows XP)

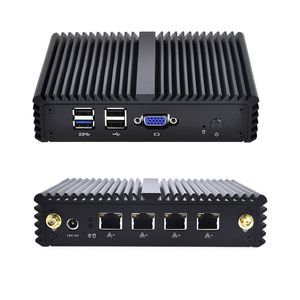

Front-Panel Connectors
power on/off
Power LED
3 x USB 2.0 Ports
1 x USB 3.0 Port
1 x VGA Port
Internal Connectors
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module,only for USB singal)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x RS232 header (optional)
1 x SIM Card slot (optional)
Back-Panel Connectors
1 x DV 12V input
Power LED,HDD LED
4 x RJ-45 Ports
Package including:
1 x Q190G4N mini computer
1 x Power adapter
1 x Power cable
1 x VESA Mount Bracket ( 75mm x75mm )
Remarks:
1. Fanless, zero noise.
2. This mini pc has 4 gigabit lan ports, can be used for a low-consumption firewall appliance, WiFi router, support OPNsense, CentOS ect.
3. Operating System: Unactivated Windows 7 without license preinstalled for Test. Or wanna other OS, pls leave us a message.
Case S07: Size: 156 x 128 x 37mm - support SSD ( MSATA / SATA)
Case S08: Size: 156 x 128 x 47mm - support SSD ( MSATA / SATA) and HDD (2.5 inch SATA HDD)
We send S07 case by default. If you need S08 case, pls leave us a message, thanks!
Onboard CPU: Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Memory: Support DDR3L 1333/1600 MHz 1.35V
-1 x DDR3L DIMM Memory Slot , max. supports up to 8GB Memory
Hard Disk: Support mSATA SSD or 2.5 inch SATA HDD
Chipset: Intel Soc Chipset
Onboard VGA: Intel HD Graphics
Onboard LAN: 4 x Intel I211AT - 10/100/1000 Controller
WiFi: Optional (Only support USB Signal Wireless Card)
Power Consumption: 10W
Operating System: Support Windows 7/Windows 8/Windows 10/Linux/OPNsense etc.(Not support Windows XP)
Front-Panel Connectors
power on/off
Power LED
3 x USB 2.0 Ports
1 x USB 3.0 Port
1 x VGA Port
Internal Connectors
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module,only for USB singal)
1 x DDR3L SO-DIMM Memory Slot
1 x SATA Port
1 x SATA power connector
1 x Automatically boot jumper
1 x RS232 header (optional)
1 x SIM Card slot (optional)
Back-Panel Connectors
1 x DV 12V input
Power LED,HDD LED
4 x RJ-45 Ports
Package including:
1 x Q190G4N mini computer
1 x Power adapter
1 x Power cable
1 x VESA Mount Bracket ( 75mm x75mm )
Remarks:
1. Fanless, zero noise.
2. This mini pc has 4 gigabit lan ports, can be used for a low-consumption firewall appliance, WiFi router, support OPNsense, CentOS ect.
3. Operating System: Unactivated Windows 7 without license preinstalled for Test. Or wanna other OS, pls leave us a message.
