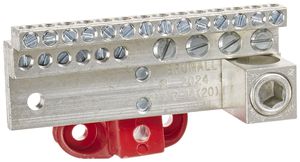

Neutral Bar and Neutral Assembly, 225A Neutral Bar with Mounting Base, (20) 4-14 AWG 1/0-14 AWG Wire Range, 600VAC Voltage, 350 MCM - 6 Lug Size, 2.437" Width, 2.900" Height, 4.457" Length

[Music] here we have our 42 circuit main lug only interior your interior might look a little different than ours we've taken our interior out of the box so that you have a better view of what we're doing the first thing you want to do is locate where your neutral is your feed through lugs will be installed on the opposite end of where your neutral is things are going to differ a little bit now depending on how many spaces your panel board is if you have a 42 space panel board you just need to remove the entire dead front assembly by taking out the four inner screws please remember to retain these screws as you will need them again to reconnect this dead front back on to the panel board if you have a 30 54 72 or 84 space panel board you'll have to remove the dead front as we did for the 42 space interior but you'll also need to remove the cover extension this can be found if you locate t
