Description

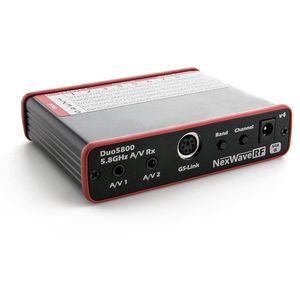

ImmersionRC DUO5800 5.8GHz Receiver Race Edition - >-90dBm typical sensitivity, NexWaveRF module technology - Standard Frequencies : IRC/FatShark: 5740, 5760, 5780, 5800, 5820, 5840, 5860 (all within the legal ISM band) IRC RaceBand: 5685, 5695, 5732, 5769, 5806, 5843, 5880, 5917 MHz (legal for Ham use in USA) - Extra frequencies : E Band: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945 B Band: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866 A Band: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725 - Event frequencies (require a special license worldwide) Low Band: 5362, 5399, 5436, 5473, 5510, 5547, 5584, 5621 -A/V receiver with diversity antenna inputs -GS-Link (Groundstation Link) for direct single-cable connection to the ImmersionRC Groundstation - >-90dBm typical sensitivity (using NexWaveRF module technology) -SMA female antenna connectors, compatible with standard 5.8GHz antennas (omni or directional) - Compatible with 'DC Short' antennas (such as the Cloverleaf, and SPW) -Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz as standard, with 32 channel mode supporting most competitor's transmitters. -Audible Low-battery alarm, Duo5800v4 uses a switching regulator for lower power consumption, and runs much cooler -Inputs filtered against nearby 2.4GHz and UHF R/C radios. -Input voltage 6-16V DC (2.1mm plug, center pin positive)
