Description
Description:
TX Technical Specifications:
Receiver module parameters
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4mA
4.Receiving frequency: 315MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral
Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 315M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left ? right: (DATA; VCC; GND)
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 315M of about 23cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
Package included:
1x 315 mhz RF transmitter
1x 315 mhz RF receiver
TX Technical Specifications:
Receiver module parameters
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4mA
4.Receiving frequency: 315MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral
Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 315M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left ? right: (DATA; VCC; GND)
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 315M of about 23cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
Package included:
1x 315 mhz RF transmitter
1x 315 mhz RF receiver

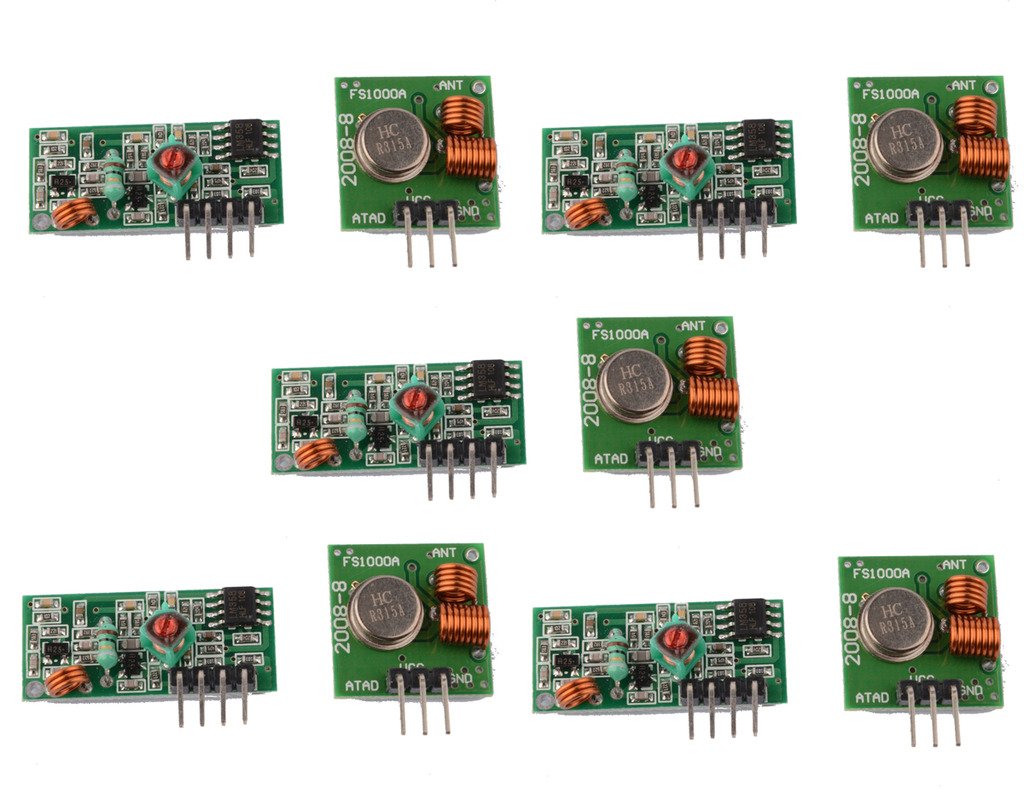

DAOKI 5PCS 315Mhz RF Transmitter and Receiver Link kit for Arduino/ARM/MCU/Raspberry pi Wireless
Price is below average
Current Price
$7.39
Average
$7.53
Min Price
$4.77
Max Price
$8.98
Price dynamics
2%
Description
Description:
TX Technical Specifications:
Receiver module parameters
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4mA
4.Receiving frequency: 315MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral
Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 315M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left ? right: (DATA; VCC; GND)
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 315M of about 23cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
Package included:
1x 315 mhz RF transmitter
1x 315 mhz RF receiver
TX Technical Specifications:
Receiver module parameters
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4mA
4.Receiving frequency: 315MHZ
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral
Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency: 315M
9.An external antenna: 25cm ordinary multi-core or single-core line
10.Pinout from left ? right: (DATA; VCC; GND)
Application environment
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Remark
1.VCC voltage module operating voltage and good power filtering;
2.Great influence on the antenna module reception, preferably connected to the 1/4 wavelength of the antenna, typically 50 ohm single conductor, the length of the antenna 315M of about 23cm;
3.Antenna position has also affected the reception of the module, the installation, the antenna as possible straight away from the shield, high pressure, and interference source; frequency used to receive, decode and oscillation resistor should match with the transmitter.
Package included:
1x 315 mhz RF transmitter
1x 315 mhz RF receiver
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hi everyone yeah everyone we've got these are a transmitter and a receiver so these are 433 megahertz transmitter and receiver and they're extremely cheap on eBay you can get them very very cheap imported from China and eBay's full of them these are readily available on they're extremely common so I've done a video on this in the past and the video was very very popular and it was hugely successful really bought I mean back then I had last knowledge less equipment and the videos were last quality so I'm hoping to improve on that and hopefully give you some you know more concise info get it done quicker with a better quality video so here we go this is how to use the modules with arduino so to start with our zoom out and there's something very important which you can see that is different with my transmitter and receiver than probably what you've got from Evo and that is of course it's a
