Description
The module has applied the latest 2.4G wireless transmission technology which features with stable and reliable performance, long communication distance and strong anti-interference ability. It is suitable for the development and application of toys, model airplanes and other products. Application: 1. Wireless remote control car; 2. Ship model; 3. Model airplane; 4. Wireless temperature and humidity detection; 5. Intelligent data collection. Using Steps: 1.Prepare the controller, such as Arduino 2.Read LT89xx(LT8900/LT8901/LT8902) datasheet 3.Write code by datasheet and controller 4.Test Note: GWB module supports PA unidirectional gain amplifier. So the transmission distance is 400M, but the receiving distance is 50M. It is recommended to be used as a transmitter. Parameters: GWB Receiver Size: 15.6*11.1*1.7mm T400 Transmitter Size: 16.7*15.4*1.7mm Antenna length: About 50mm Working Voltage: DC 3.0V~3.6V GWB module: Support PA unidirectional gain amplifier Normal Working Current: 30mA Instantaneous Emission Current: 340mA Pins space: 2.0mm Work Frequency: 2.4GHz T400 Transmission Distance: 400M T400 Receiving Distance: 50M GWB Transmission Distance: 400M GWB Receiving Distance: 400M Work Temperature: -20℃~85℃ Work Humidity: 0%~95%RH Package Included: 1 x GWB 2.4G Wireless Transceiver Module; 1 x T400 2.4G Wireless Transceiver Module.

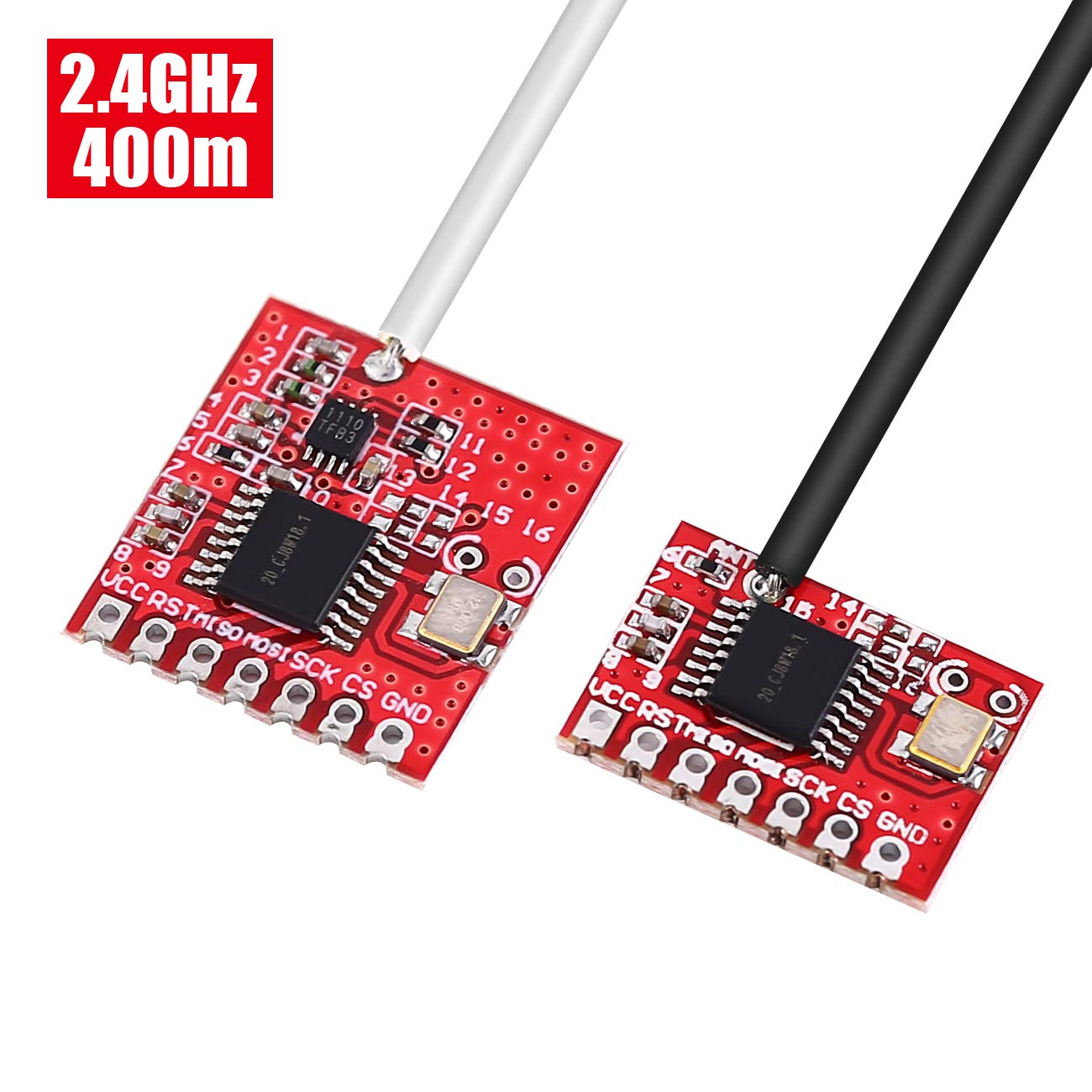

WHDTS 2.4G 400M Wireless Transceiver Module T400 Transmitter GWB Receiver Kit for Remote Control Toys IIC SPI Communication
Current Price
$8.99
Average
$8.99
Min Price
$8.99
Max Price
$8.99
Description
The module has applied the latest 2.4G wireless transmission technology which features with stable and reliable performance, long communication distance and strong anti-interference ability. It is suitable for the development and application of toys, model airplanes and other products. Application: 1. Wireless remote control car; 2. Ship model; 3. Model airplane; 4. Wireless temperature and humidity detection; 5. Intelligent data collection. Using Steps: 1.Prepare the controller, such as Arduino 2.Read LT89xx(LT8900/LT8901/LT8902) datasheet 3.Write code by datasheet and controller 4.Test Note: GWB module supports PA unidirectional gain amplifier. So the transmission distance is 400M, but the receiving distance is 50M. It is recommended to be used as a transmitter. Parameters: GWB Receiver Size: 15.6*11.1*1.7mm T400 Transmitter Size: 16.7*15.4*1.7mm Antenna length: About 50mm Working Voltage: DC 3.0V~3.6V GWB module: Support PA unidirectional gain amplifier Normal Working Current: 30mA Instantaneous Emission Current: 340mA Pins space: 2.0mm Work Frequency: 2.4GHz T400 Transmission Distance: 400M T400 Receiving Distance: 50M GWB Transmission Distance: 400M GWB Receiving Distance: 400M Work Temperature: -20℃~85℃ Work Humidity: 0%~95%RH Package Included: 1 x GWB 2.4G Wireless Transceiver Module; 1 x T400 2.4G Wireless Transceiver Module.
