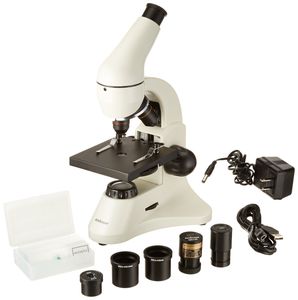

The AmScope M120C-2L-PB10-E1 digital monocular compound microscope has 10x and 25x widefield eyepieces, a reverse-mounted nosepiece with three DIN achromatic objectives, Brightfield upper and lower LED illumination, a 0.65 NA single-lens condenser, and a plain stage. The 1.3MP camera has a CMOS color sensor, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The reverse-mounted revolving nosepiece has 4x, 10x, and 40x DIN achromatic objectives that provide color correction of magnified images. The monocular viewing head holds the WF10x or WF25x eyepiece on a fixed 45-degree vertical inclination to reduce eye and neck strain and has 360-degree rotation capability to provide a more comprehensive view and enable sharing. A digital compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired, and where image capture, detailed records, or documentation is required.
The 1.3MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector, and 40x magnification. The camera can be mounted in any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).
The microscope has upper (episcopic) LED illumination that reflects light off the specimen for enhanced visibility of opaque specimens, and lower (diascopic) LED illumination that t
