Description

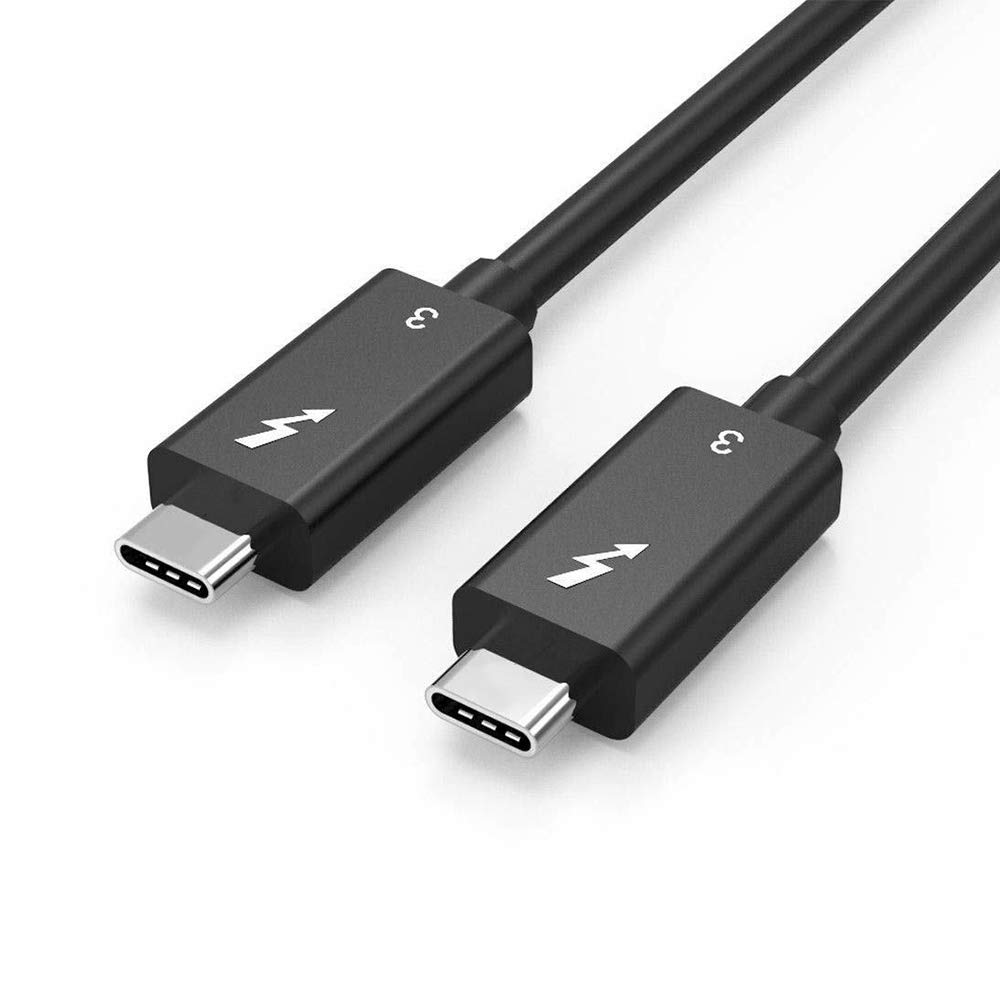

Thunderbolt 3 Data Cable Description
Electrical Specification:
Transmission data rate:
- TBT: 2-lane TBT Gen2* or TBT Gen3* full duplex operation.
- USB: 1-lane USB2.0 half duplex operation, 2-lane USB3.1 Gen1 or USB
Gen2* full duplex operation.
Operating Voltages: VBUS: 5V - 20V (typ.), VCONN: 5V (typ.)
Power consumption: under 30mW.
Current delivery capacity: 3A (max.)
Compliant with USB Power Delivery Specification Rev2.0
Storage and Operation Temperature:
Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.
Thunderbolt 3 USB C Cord Features
1. Passive high bandwidth cable with E-Marker function.
2. Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission
3. Supports 1-CH USB3.1 Gen1 or Gen2 full duplex high speed transmission
4. Supports 1-CH USB2.0 half duplex transmission
5. Support 4-lane DisplayPort video signal transmission, DP alternate mode
6. Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices
7. Plug flip-able use
8. Compliant with USB Power Delivery Specification Rev2.0. Maximum power delivery capacity up to 3A
Super Fast Data Deliver
Transfer a 4K movie in less than 30 seconds
Deliver a year of MP3s in 5 minutes
Package Included:
1x Thunderbolt 3 Cord
Thunderbolt 3 40Gbps Cable Compatible With
Compatible With:
Apple: 15"MacBook Pro, 13"MacBook Pro, MacBook Air
Dell: Precision7720, Alienware 17, Latitude 7720, Vostro 15, Inspiron 15
HP: EliteBook 1040 G4, EliteBook X360 1030 G3, Spectre x360 Convertible PC 13
ThinkPad: T580,T570,T480s,T480,T470s,T470,P71,P52S
HUAWEI: MateBook X PRO, IdeaPad720s
SAMSUNG3: NoteBook9 Always 2018
SONY: Hybrid VAIO
Etc. thunderbolt 3 USB C adapter devices.
Electrical Specification:
Transmission data rate:
- TBT: 2-lane TBT Gen2* or TBT Gen3* full duplex operation.
- USB: 1-lane USB2.0 half duplex operation, 2-lane USB3.1 Gen1 or USB
Gen2* full duplex operation.
Operating Voltages: VBUS: 5V - 20V (typ.), VCONN: 5V (typ.)
Power consumption: under 30mW.
Current delivery capacity: 3A (max.)
Compliant with USB Power Delivery Specification Rev2.0
Storage and Operation Temperature:
Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.
Thunderbolt 3 USB C Cord Features
1. Passive high bandwidth cable with E-Marker function.
2. Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission
3. Supports 1-CH USB3.1 Gen1 or Gen2 full duplex high speed transmission
4. Supports 1-CH USB2.0 half duplex transmission
5. Support 4-lane DisplayPort video signal transmission, DP alternate mode
6. Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices
7. Plug flip-able use
8. Compliant with USB Power Delivery Specification Rev2.0. Maximum power delivery capacity up to 3A
Super Fast Data Deliver
Transfer a 4K movie in less than 30 seconds
Deliver a year of MP3s in 5 minutes
Package Included:
1x Thunderbolt 3 Cord
Thunderbolt 3 40Gbps Cable Compatible With
Compatible With:
Apple: 15"MacBook Pro, 13"MacBook Pro, MacBook Air
Dell: Precision7720, Alienware 17, Latitude 7720, Vostro 15, Inspiron 15
HP: EliteBook 1040 G4, EliteBook X360 1030 G3, Spectre x360 Convertible PC 13
ThinkPad: T580,T570,T480s,T480,T470s,T470,P71,P52S
HUAWEI: MateBook X PRO, IdeaPad720s
SAMSUNG3: NoteBook9 Always 2018
SONY: Hybrid VAIO
Etc. thunderbolt 3 USB C adapter devices.
