Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:21 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:21 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V C-MOUNT Lens:
Zoom C-Mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55m-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
Package Including:
1 x Microscope Camera
1 x 100X Lens
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:21 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:21 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V C-MOUNT Lens:
Zoom C-Mount Lens
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55m-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
Package Including:
1 x Microscope Camera
1 x 100X Lens
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control

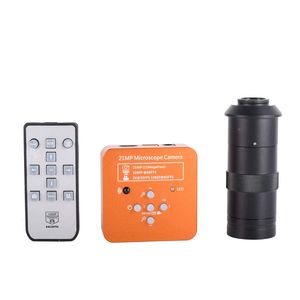

HAYEAR Full HD 21MP 2K 1080P 60FPS HDMI USB Industrial Electronic Digital Video Microscope Camera for Phone CPU PCB Repair +100X Zoom C-Mount Lens
