Specifications:

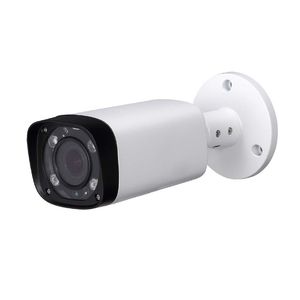

Model : IPC-HFW4431R-Z
Camera : 1/3" 4Megapixel progressive scan CMOS
Effective Pixels : 2592(H)x1520(V)
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
Min. Illumination : 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio : More than 50dB
Adjust the angle : Level : 99° ~ 36°, Vertical : 47° ~ 17° Camera Features
Max. IR LEDs Length : 80m
Day/Night : Auto(ICR)/Color/B/W
Backlight Compensation : BLC / HLC / WDR(120dB)
White Balance : Auto/Manual
Gain Control : Auto/Manual
Noise Reduction : 3D
Privacy Masking : Up to 4 areas
Lens
Focal Length : 2.7mm~12mm Electric Zoom Lens
Max Aperture : F2.0(F2.0/F2.0)
Focus Control : Auto
Angle of View : 99 ° ~36 °
Lens Type : Fixed lens
Mount Type : Board-in Type
Video
Compression : H.265/H.264/H.264B/H.264H/ MJPEG
Resolution:4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate :Main Stream/Sub Strea/Third Stream
Bit Rate : 1080P:2~4Mbps 720P:1~2Mbps
Corridor Mode : Support
Audio
Compression :N/A
Interface : N/A
Smart Function
Video Detection : Motion Detection/Video Tamper/Defocus Detection/Face Detection
Smart detection : Tripwire/Intrusion/Abandoned/Missing/Scene Changing/Loitering Detection/Crowd Gathering Estimation/Fast-Moving/Parking Detection
Network
Ethernet : RJ-45 (10/100Base-T)
Wi-Fi : N/A
Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility : ONVIF,PSIA,CGI
Max. User Access :20 users
Smart Phone : iPhone, iPad, Android
