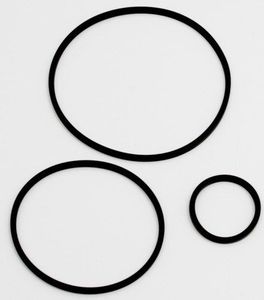

Elmo ST 1200 MO HD 1200D Movie Projector Motor 3 Belt Set

this is for the benefit of those that may be repairing or restoring Elmo ST 1200 projector now these things were notorious for having decayed belts on the motor they turned into like a thick tail like snotty substance that scent tends to go everywhere it's damn hard to remove but the good news is that belts are readily available and rather cheap but what I've found to be a bit problematic is finding information as to which belt goes where and how to actually do it now you get three belts you get a very long one which goes between these two cogs over here easy way of doing is removing that screw that clog comes completely out squish it the belt through that end pop it around the other cog and then screw it back in the next size up belt actually goes around the motor spindle as you can see over there got two sides one for countries they've got sixty Hertz power and the other one there's f
