Our 7 Panel EZ Connect Kit allows you to install your 7 panel solar water heater system in record time. With our revolutionary EZ-Connect Solar Water Heater panels and PUSH FIT fittings, you simply plug the panels into each other--no wrench required. No more external connection pipes for multi panel installations!
Each panel weighs slightly over 12 lbs. and is 24" by 24" but can still provide you with ample hot water. As with all of our Heliatos Solar Water Heating Kits you can begin your system with a few panels and add more if you need more. With this kit you DO NOT have to solder at all!
Please Note: This System will not work with Marathon non metallic water heaters and is NOT freeze protected. If you experience freezes you either have to drain the system
or consider our GH type Solar Water Heating Systems.

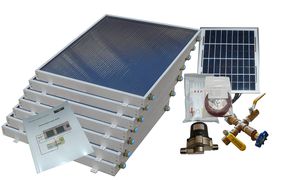

Each kit comes with:

7 EZ-37 Panels
All fittings, Adapters, and Connectors, Wire
1 TopsFlo TD5 Pump
1 Bottom Feed Connector to connect directly to your existing water heater
1 Grade A 10W PV panel to power the pump - NO grid connection required
Installation Instructions

All You have to supply is:

Your choice of 1/2" Pipe from the panels to the water heater(Copper, CPVC, or PEX)
Fasteners to attach the panels to the roof, and the parts to feed the pipes through the roof if needed.
Insulation for the pipes.
Your existing Water Heater
Tools needed for installation
