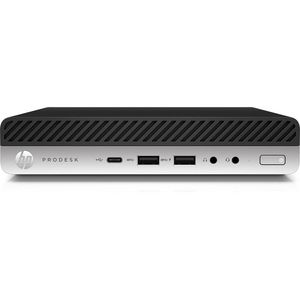

HP ProDesk 600 G3 1GG09UT#ABA Mini PC

To access components that are inside the PC, you will need to remove the access panel to remove the access panel. First, slide the latch for the panel to the stencilled unlocked position. Brace the bottom of the unit on the table, and firmly slide the panel forward to disengage it from the PC. Lift the panel off of the PC. The access panel has tabs on the inside edges of the panel that slide into slots on the chassis. To reattach the panel, align the tabs near the open ends of their slots on the PC. Slide the panel to the rear of the unit until the rear edge of the panel is flush against the rear of the chassis. slide the panel locking latch to the locked position. To remove the two and a half inch hard drive, first, remove the access panel. Swing the hard drive cage lever up. The hard drive will slide toward the front of the drive cage. Lift the hard drive up and out of the cage. If re
