Description
Supplier: MEAN WELL USA Part No: SGA60U05-P1J RoHS: Yes COO: CN ECCN: EAR99 : 60 Input/Output Type: AC/DC Type: Regulated-Switching Style: WallMount Output Type: Fixed Number of Outputs: 1 Power: 30 W Output Voltage: 5 VDC Output Current: 6.0 A Ripple & Noise: 80mV Grade: Commercial MOPP: Not App DOE Efficiency Level: VI CoC Tier: No Safety Class: II Safety Approvals: CB, cL, UL Efficiency: 84(Typ) % Output Connector Type: Barrel - Female Output Connector Polarity: Center Positive Output Connector Diameters: 2.1x5.5 mm Output Connector Angle: Straight Output Cord Length: 1.0m (39.4in) AC Input Voltage: 90 to 264 Minimum AC Input Voltage: 90 Maximum AC Input Voltage: 264 Input Frequency: 47 to 63 Hz Line Regulation: 1.00 % Load Regulation: 5.00 % Overload Protection: Yes Over Voltage Protection: Yes Short Circuit Protection: No Thermal Protection: No Operating Temperature: -20 to 50 °C Power Indicator: Yes Minimum Load (Amps): 0 Minimum Isolation Voltage: 4242 VDC Input Connector Type: NA Blades (U.S. and Others) Dimensions L x W x H: 93.5 x 35.0 x 51.5mm Dimensions L x W x H(in): 3.69 x 1.38 x 2.03in Unit of Measure: Per Each
SGA60U05-P1J, AC/DC Adapter - Wall Mount - 30 Watts: 5V @ 6A - NA Input Blades
Current Price
$29.95
Average
$29.95
Min Price
$29.95
Max Price
$29.95
Description
Supplier: MEAN WELL USA Part No: SGA60U05-P1J RoHS: Yes COO: CN ECCN: EAR99 : 60 Input/Output Type: AC/DC Type: Regulated-Switching Style: WallMount Output Type: Fixed Number of Outputs: 1 Power: 30 W Output Voltage: 5 VDC Output Current: 6.0 A Ripple & Noise: 80mV Grade: Commercial MOPP: Not App DOE Efficiency Level: VI CoC Tier: No Safety Class: II Safety Approvals: CB, cL, UL Efficiency: 84(Typ) % Output Connector Type: Barrel - Female Output Connector Polarity: Center Positive Output Connector Diameters: 2.1x5.5 mm Output Connector Angle: Straight Output Cord Length: 1.0m (39.4in) AC Input Voltage: 90 to 264 Minimum AC Input Voltage: 90 Maximum AC Input Voltage: 264 Input Frequency: 47 to 63 Hz Line Regulation: 1.00 % Load Regulation: 5.00 % Overload Protection: Yes Over Voltage Protection: Yes Short Circuit Protection: No Thermal Protection: No Operating Temperature: -20 to 50 °C Power Indicator: Yes Minimum Load (Amps): 0 Minimum Isolation Voltage: 4242 VDC Input Connector Type: NA Blades (U.S. and Others) Dimensions L x W x H: 93.5 x 35.0 x 51.5mm Dimensions L x W x H(in): 3.69 x 1.38 x 2.03in Unit of Measure: Per Each
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video

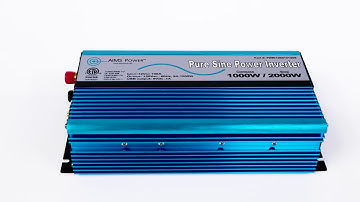

[Music] ames power 1000 watt pure sine power inverter with 2 000 watt surge capacity this inverter features dual ac outlets and also has a usb charging port the inverter has led power and fault indicators and safety protections such as overload short circuit high and low voltage and over temperature it also features a grounding terminal that will prevent high voltage on the case of the inverter in the event of a short in the system you can also purchase an optional on off remote panel for this inverter the dc terminals are located on the back of the inverter one red one black for optimal cooling this inverter includes one thermally controlled fan convenient mounting holes and listed to ul 458 and csa 22.2 standards backed by a two-year warranty
