How to Use
Simply connect the rearview camera with the wireless transmitter, yellow connector to the video connector of your camera, the power wire connect to backup light,postive lead to postive lead,negative lead to negative lead.
Connect your lcd monitor with the wireless receiver, yellow connector connect to video connector of monitor, red connector to the power connector of monitor,for the rest power wire of wireless receiver,you can connect it to reverse circuit in the fuse box or anyplace with power 12V.
Specification
Device Type: 2.4G Wireless Color Video Transmitter & Receiver
Transmission Receiving Frequency point: 2370MHZ
Output power: 100MW
Voltage: 12V
Video input: PAL/NTSC composite video signal
Transmission receiving distance: 150m (open space)
Working temperature: -20 to 80 Celsius
Video output: PAL/NTSC composite video signal
Receiving sensitivity: 85dBm
Working current: DC12V 200mA
Power supply: DC 5V 1.5A
Package Included
1 x 2.4G Wireless Transmitter.
1 x 2.4G Wireless Receiver.
1 x User Manual.

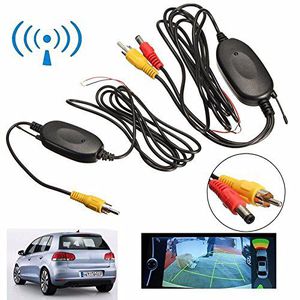

iMeshbean 2.4G Wireless Color Video Transmitter & Receiver for Car Rear Backup View Camera
How to Use
Simply connect the rearview camera with the wireless transmitter, yellow connector to the video connector of your camera, the power wire connect to backup light,postive lead to postive lead,negative lead to negative lead.
Connect your lcd monitor with the wireless receiver, yellow connector connect to video connector of monitor, red connector to the power connector of monitor,for the rest power wire of wireless receiver,you can connect it to reverse circuit in the fuse box or anyplace with power 12V.
Specification
Device Type: 2.4G Wireless Color Video Transmitter & Receiver
Transmission Receiving Frequency point: 2370MHZ
Output power: 100MW
Voltage: 12V
Video input: PAL/NTSC composite video signal
Transmission receiving distance: 150m (open space)
Working temperature: -20 to 80 Celsius
Video output: PAL/NTSC composite video signal
Receiving sensitivity: 85dBm
Working current: DC12V 200mA
Power supply: DC 5V 1.5A
Package Included
1 x 2.4G Wireless Transmitter.
1 x 2.4G Wireless Receiver.
1 x User Manual.
