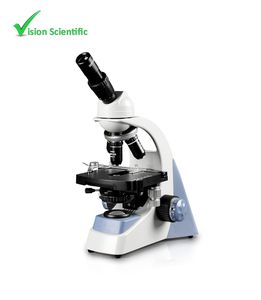

This Vision Scientific VMU0005-M monocular compound microscope is 45° inclined to reduce eye and neck strain. It features a reverse nosepiece to facilitate easy slide changes.
It features a reverse nosepiece to facilitate easy slide changes. The 40xR and 100xR objectives are retractable and spring-loaded to prevent damage to slides and objectives when focusing.
Rack and pinion adjustable 1.25 N.A. Abbe Condenser, and turn-wheel opening iris diaphragm with plastic shield protector, for optimal resolution and image contrasting. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background.
Specifications
- Head: Monocular, 45° inclined, rotates 360°
- Eyepiece: Pair of WF 10x/18mm (one with calibrated pointer)
- Magnification: 40x, 100x, 400x, 1000x
- Nosepiece: Revolving reversed quadruple objective
- Objective Lens: 4x, 10x, 40xR, 100xR oil DIN achromatic
- Stage: Built-in, double-layer mechanical stage (125mm x 125mm), smooth X/Y calibrated movement with cross travel range 60mm x 40mm
- Focusing: Coaxial coarse and fine focusing with gear movement for smooth operation
- Condenser: 1.25 NA Abbe condenser
- Diaphragm: Iris diaphragm with a swing-out filter holder
- Light Source: LED illumination with intensity control
- Power: 110V
Warranty
- 5 year limited warranty excluding bulbs
Packing List
- Monocular compound microscope with LED illumination
- One 10x widefield eyepiece with calibrated pointer
- 4x, 10x, 40xR, 100xR DIN achromatic objectives
- Immersion oil for 100xR objective
- Double layer, built-in mechanical stage with 2 Stage clips
- One dust cover
- User manual
